Welding Equipment
Squeeze Type Resistance Spot Welders, MIG Pulse Welders, MIG Brazing, Aluminum Welders, and Other Welding Equipment.
Solidus ADP-200-3 Pulse Mig
-
The Solidus 3-Gun Pulse Mig Welder is a single-phase, 200 Amp, multi-function inverter generator for Mig Pulse, Mig Double Pulse, MIG-MAG, Stick and TIG Welding.
This dynamic MiG welder has been featured by I-CAR at SEMA for 2 years and is gaining a national reputation for is easy-to-use interface and high-quality welding features. It is portable, reliable and efficient.
The system comes with in-shop training and service.
Solidus 3-Gun Pulse Mig Welder features :
Versatile 3 torch system; can be set up with steel, silicone bronze, aluminum, or any combination
Lightweight and portable with 2 gas tank positions
Easy weld setup and programming with single button selectable options
Single or double-pulse operation
Double roller drives for accurate and consistent wire feed
TIG and stick welding capability
Designed and built for the collision repair expert in mind
Solidus ADP-300-3 Pulse Mig
-
The Solidus ADP-300-3 is our 3phase version of the ADP-200-3. another 3-Gun Pulse Mig Welder is a three-phase, 200 Amp, multi-function inverter generator for Mig Pulse, Mig Double Pulse, MIG-MAG, Stick and TIG Welding.
This dynamic MiG welder has been featured by I-CAR at SEMA for 2 years and is gaining a national reputation for is easy-to-use interface and high-quality welding features. It is portable, reliable and efficient.
The system comes with in-shop training and service.
Solidus 3-Gun Pulse Mig Welder features :
Versatile 3 torch system; can be set up with steel, silicone bronze, aluminum, or any combination
Lightweight and portable with 2 gas tank positions
Easy weld setup and programming with single button selectable options
Single or double-pulse operation
Double roller drives for accurate and consistent wire feed
TIG and stick welding capability
Designed and built for the collision repair expert in mind
Allsweld ADP-200-1
-
A compact, single-phase, synergic, multi-process inverter generator for MIG / MAG, MMA, TIG “Lift”
Pulse and double-pulse welding
Characterized by cutting edge, attractive design with next generation inverter technology
Allsweld ADP-270-1 Single Gun
-
A single-gun multi-function inverter generator MIG welder for auto body repair.
Characterized by cutting edge, attractive design combined with the latest generation inverter technology and digital welding control
Versatile 1 torch system can be set up with Steel, Silicone Bronze, or Aluminum
Splatter-free welding feature minimizes reprocessing work and ensures excellent performance.
Visor protected control panel
High electrical performance reduces energy consumption
Equipped with the VISION-ARC software to satisfy synergy with complete control of all welding parameters
Autopulse 220-M3
-
A MIG / MAG pulsed generator with 3 integrated wire feeders ideal for car body repairers
Equipped with a digital PFC (Power Factor Correction); supplies pulsed welding quality comparable to three-phase products
Designed for highest performance; features several synergic curves which enables exceptional arc quality
Incredibly versatile; 3 welding torches, for use with multiple materials, including steel, aluminum and brazing (CuSi3/CuAl8), increase productivity for the modern-day workshop
Intuitive interface and high precision wire feed are ideal for car body applications with exceptional welding quality, even when used with thin sheet materials

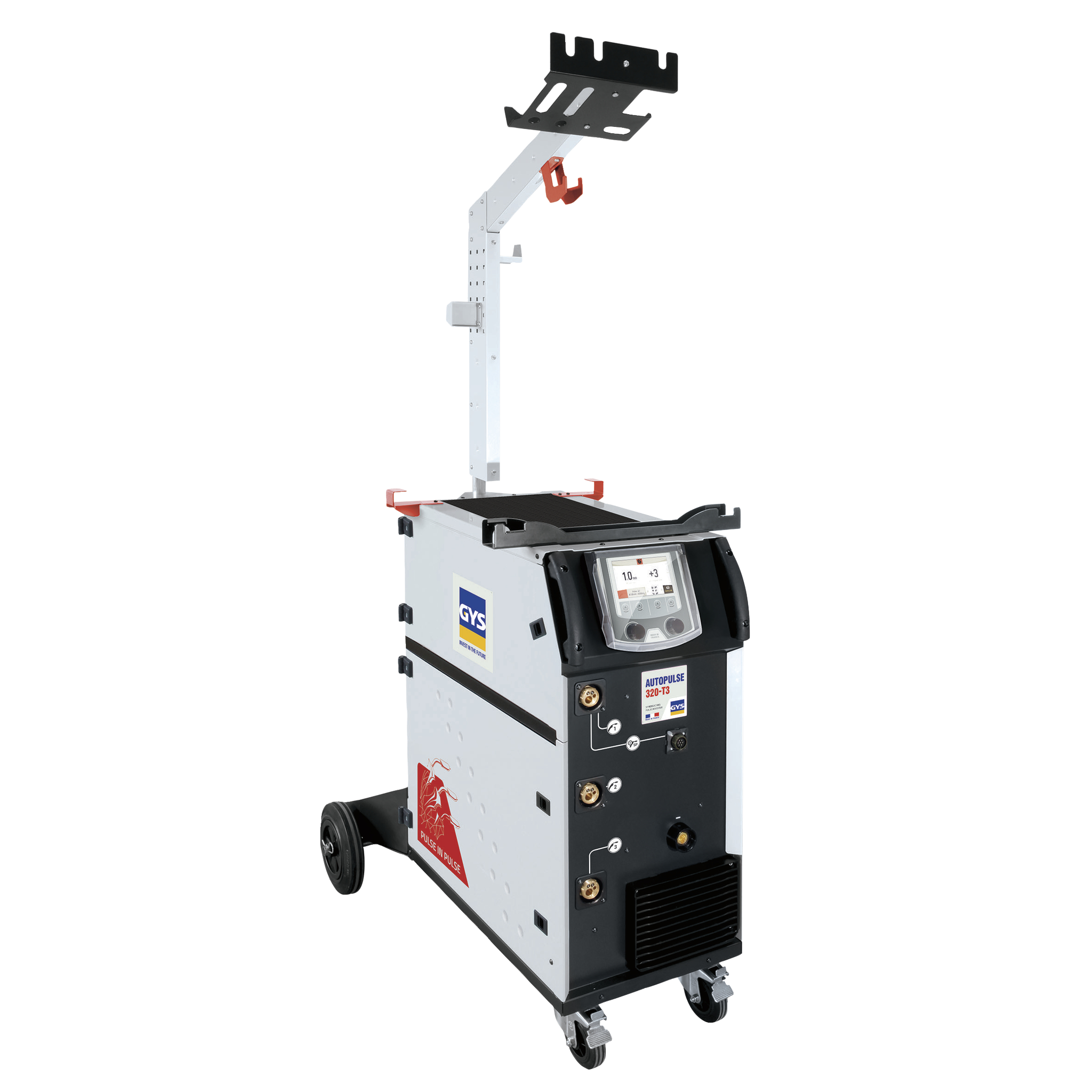

Autopulse 320-T3
-
A digital MIG/MAG double pulse generator with 3 integrated wire feeders
An extremely advanced machine with 57 synergic curves providing an exceptional arc quality
Versatile; it will hold 3 different torches to weld steel, aluminum and brazing (CuSi3/CuAl8)
User friendly interface and very precise wire feed make an outstanding quality weld on very thin sheets
ELMAspot VISION
-
A multi-function spot welding machine in the premium class with complete software package for worry-free automotive repair
Fully automatic welding, particularly for components made of higher maximum strength
Coated and laminated steel panels
Aluminum welding for thin aluminum sheets up to 3 mm
Gyspot Inverter PTI-G
-
The GYSPOT INVERTER PTI-G spot-welder is the machine of the future. Therefore the onboard intelligence guarantees full automation, offering body shops the ability to increase their efficiency. The Genius G-clamp with pneumatic over-opening, easy-arm positioning without adjustment, motorized overhanging arm that provides a wide working area. This makes the GYSPOT INVERTER PTI-G the most advanced machine for the active collision repair shop.
Motorized, Adjustable & Ergonomic Overhanging Arm
Extends up to 120cm from the power source
Motorized overhanging arm to adapt to the working height.
Adjustable in height from 159 to 253 cm
Rubber protections at the end of moving parts
Creates easy access to the work area
Smart Welding
AUTO Mode: the machine automatically recognizes – steel type, sheet-metal thickness, Panel bond presence, and insulating material between HSS/VHSS/UHSS/Boron sheet-metal.
Traceability: The recording feature saves the characteristics of each welding spot performed to the SD card provided
Easy transfer of saved reports to PC.
Robust and Mobile
Reinforced and maneuverable trolley with 30-litre coolant tank.
Expander on the front wheels for better stability.
Integrated 6-arm support
Specifications
Welding current: 14,500 A.
Clamping force: 550 daN with 8 bar air pressure.
Liquid cooling of the entire transformer, rectifier, electrodes, and caps.
The new design of the G-clamp cylinder and welding algorithm maximizes productivity
User-friendly navigation using the 5.7″ LCD screen.
Automatic adjustment of the pressure between electrodes.
Spot count feature to determine when you need to change the caps.
Gyspot Inverter BP.LG
-
The ideal spot welder to meet car manufacturers requirements (550 daN / 13 000 A with 240 V supply)
Designed for the assembly of modern steel sheets with high elasticity
Easy to handle and reduced weight (6 kg), the new genius clamp allows an automatic retraction of the electrodes in order for quick access of the welding area
Auto-mode allows welding without the operator entering any parameters into the machine
Gyspot PTI-S7 22V Evolution
-
The Gyspot-PTI-s7-220v-Evolution is the ideal answer to the welding requirements of high strength steels (UHSS/boron), with a clamping force of 550daN, with 8bars air pressure, and a welding current that can reach 14 500Amps
Its C-clamp integrates a high-tech transformer
Brings a solution to limited power supply issues, as it can operate with 16 Amps to 25 Amps fuses only
Operation is extremely easy thanks to the automatic welding parameters setting in easy mode
M1 GYS Auto
-
A single phase MIG-MAG, with torch connector
Recommended for welding steel, stainless steel, and aluminum; and for MIG brazing of high-tensile strength steels with CuSi and CuAl wires (ideal for car body repairs)
MW1 Synergic Welder
-
Excellent welding performance on any metal and thin laminate sheet
QBS Feeding Motor: Quick Brake System for constant and repeated arc striking
Quick connection for the ground cable
Metallic main structure with shock-proof fibre compound front frames
Control panel protected against impact
Large ergonomic handle for easy maneuverability
Sloping front control panel, easy to read, adjust, and visible from any direction
Standard version supplied with cylinder carriage and robust wheels
Eye-bolts on top for easy lifting
PREMIUMspot VISION
-
A multi-function spot welding machine in the premium class with complete software package for worry-free automotive repair
Fully automatic welding, particularly for components made of higher maximum strength
Coated and laminated steel panels
Aluminum welding for thin aluminum sheets up to 3 mm
