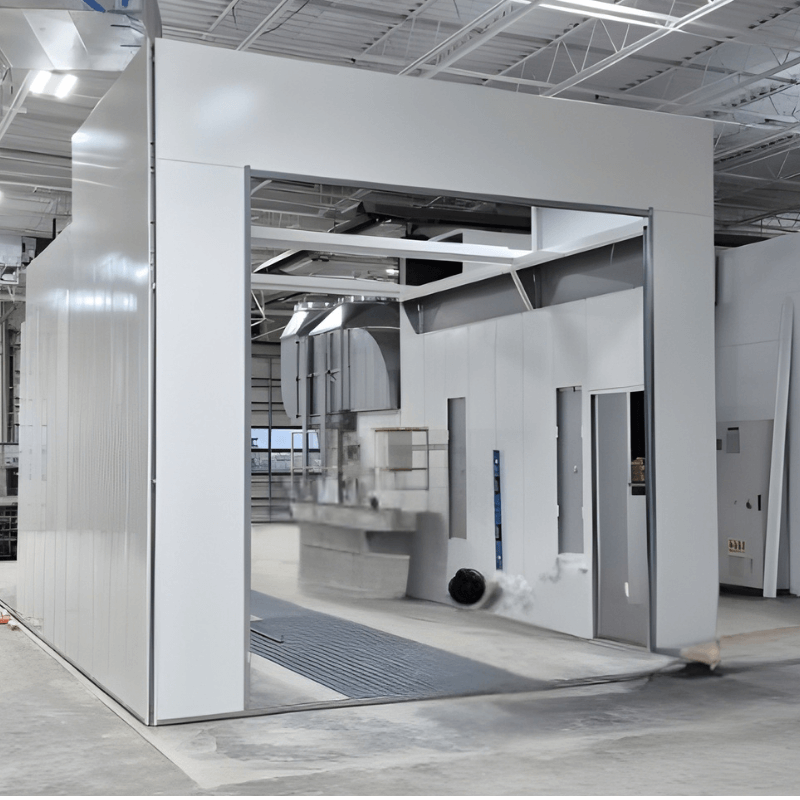

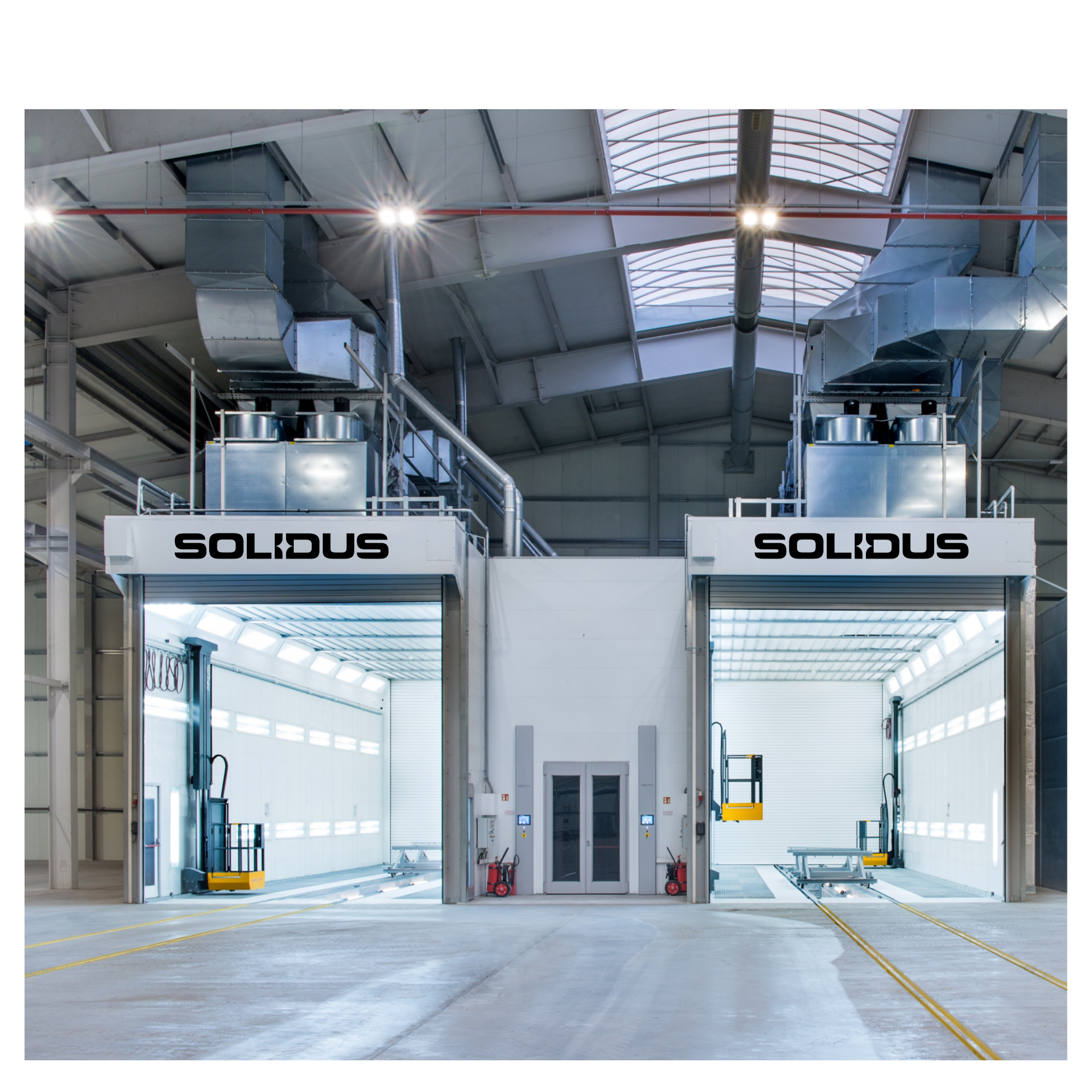

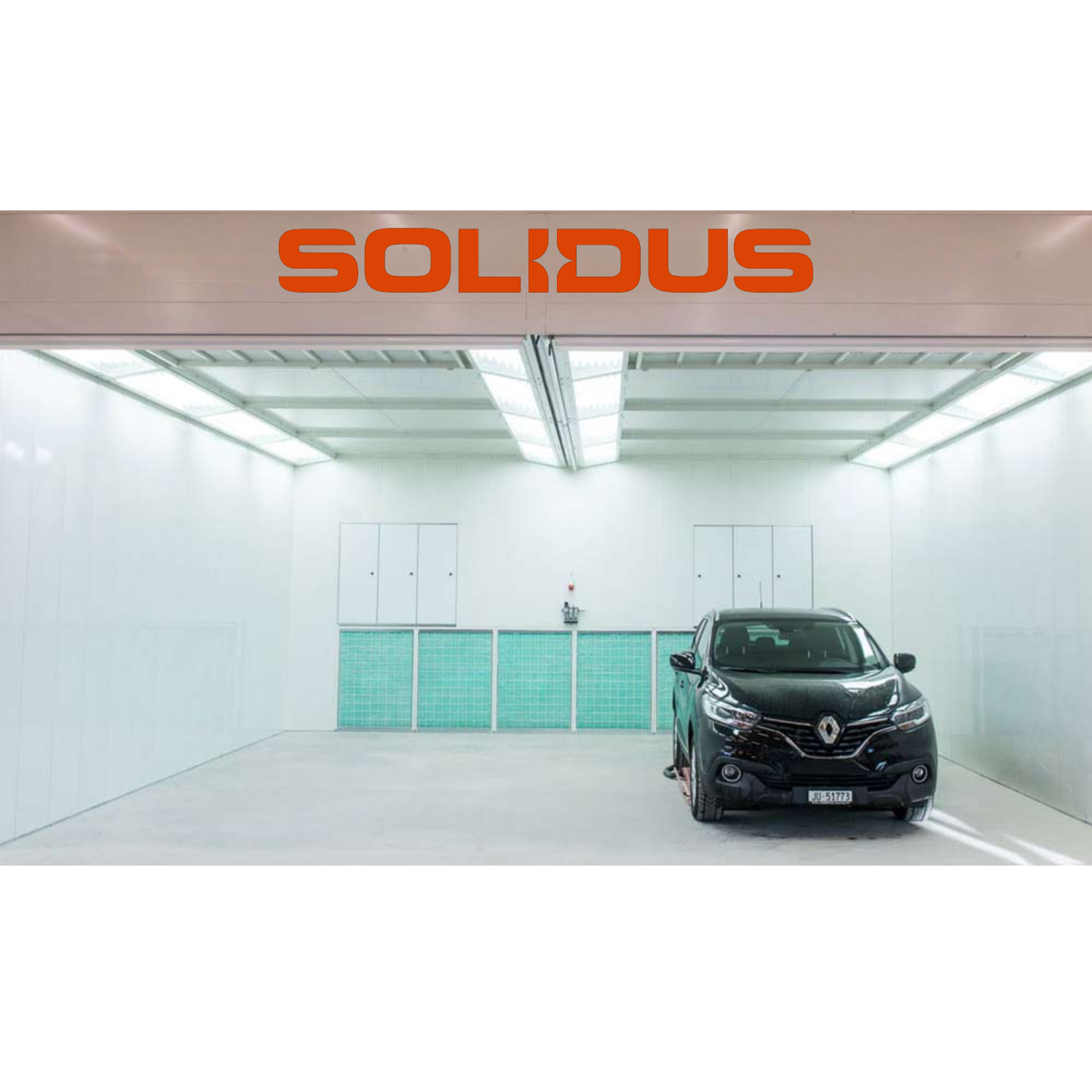

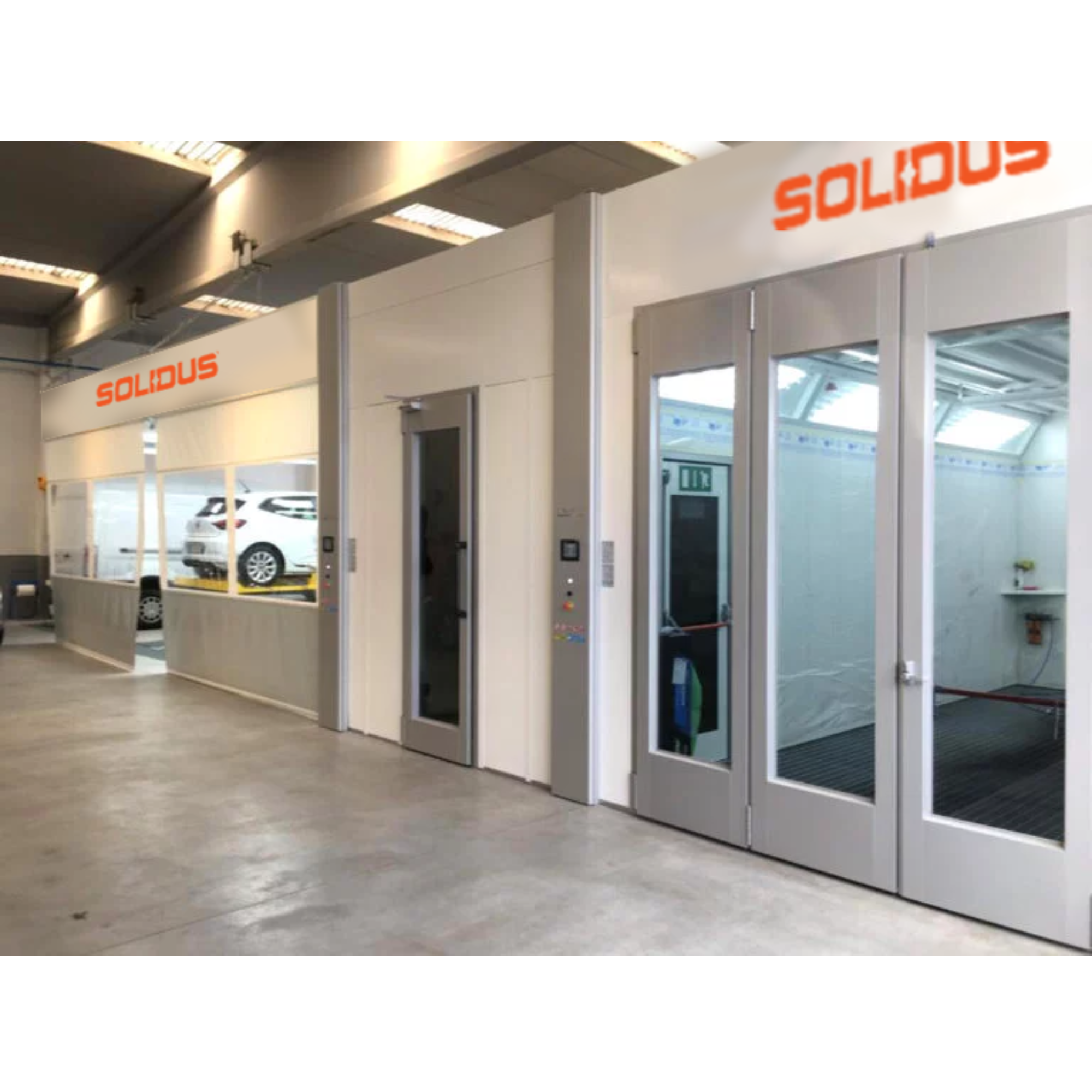

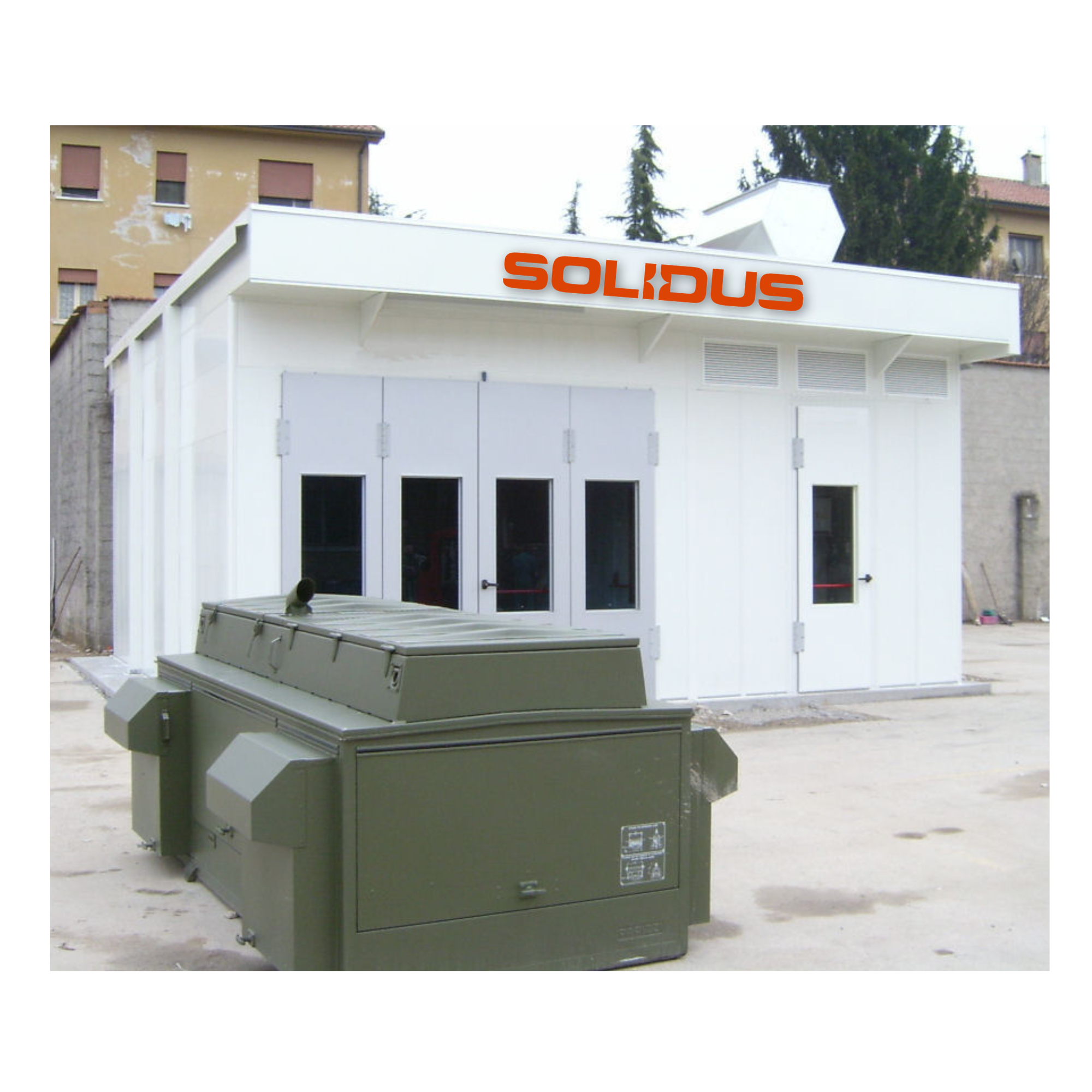

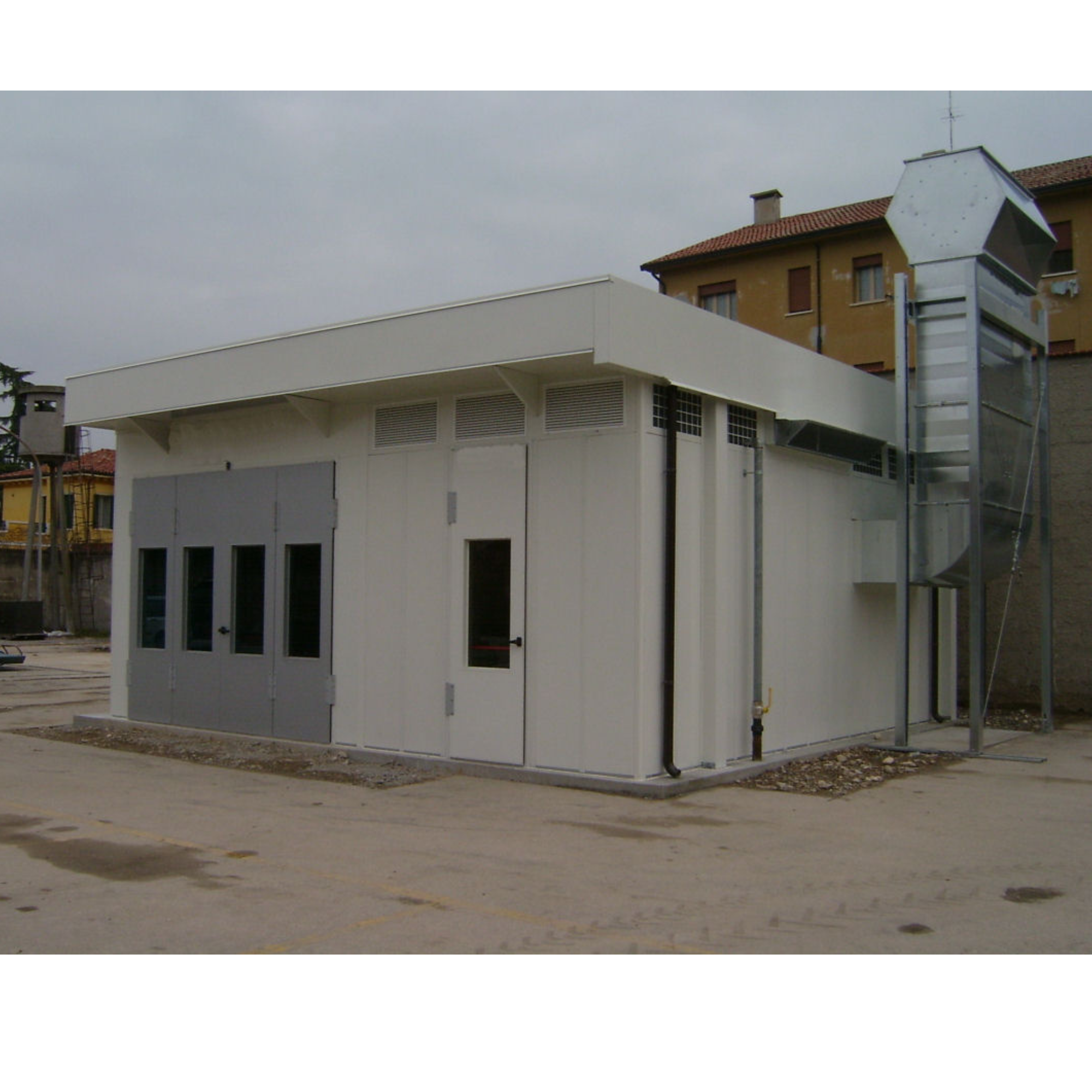

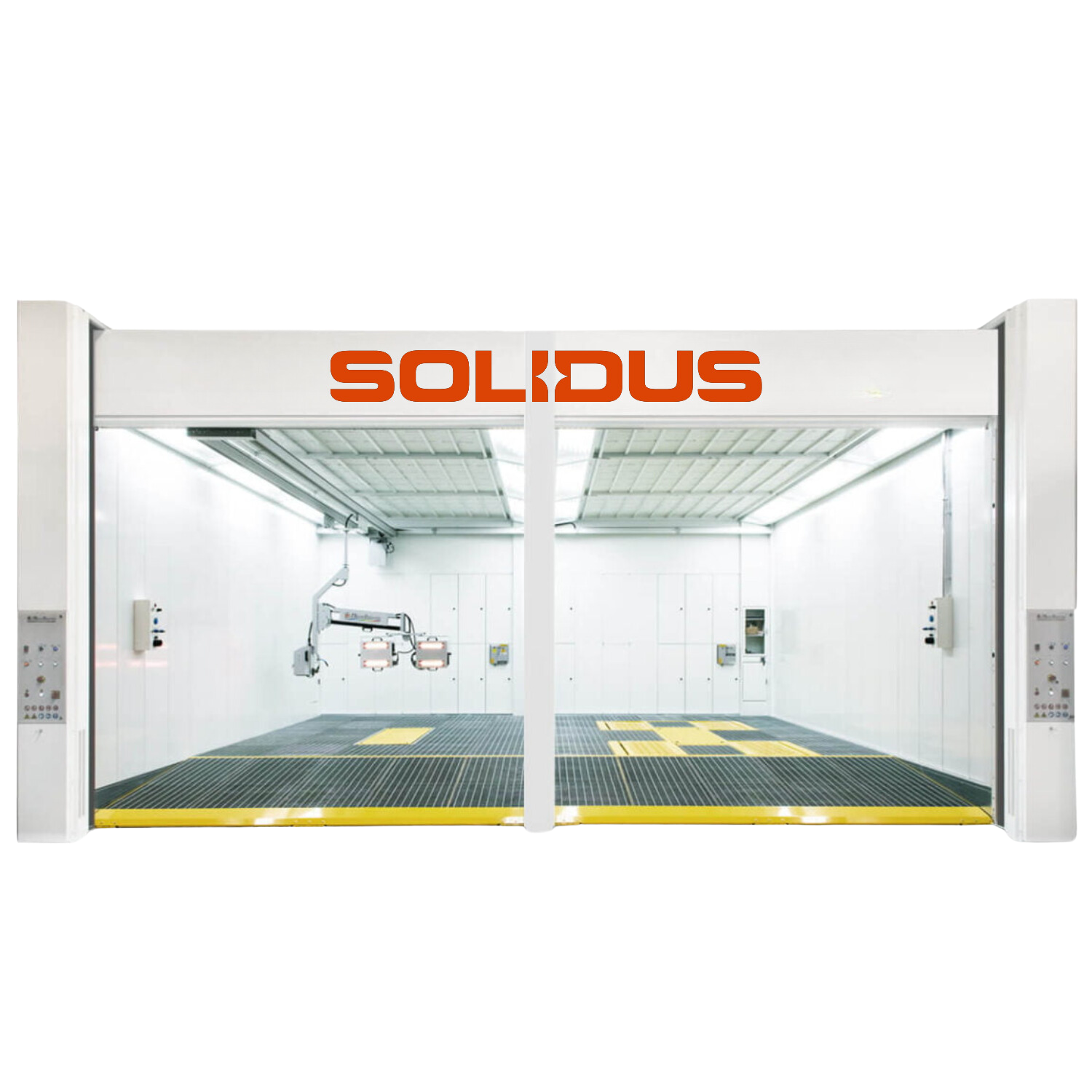

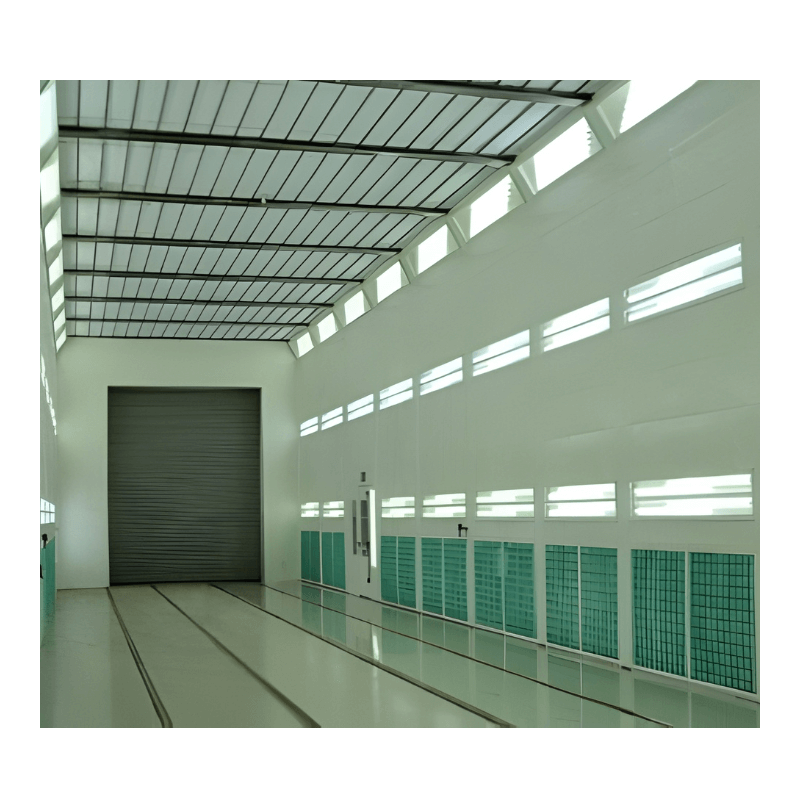

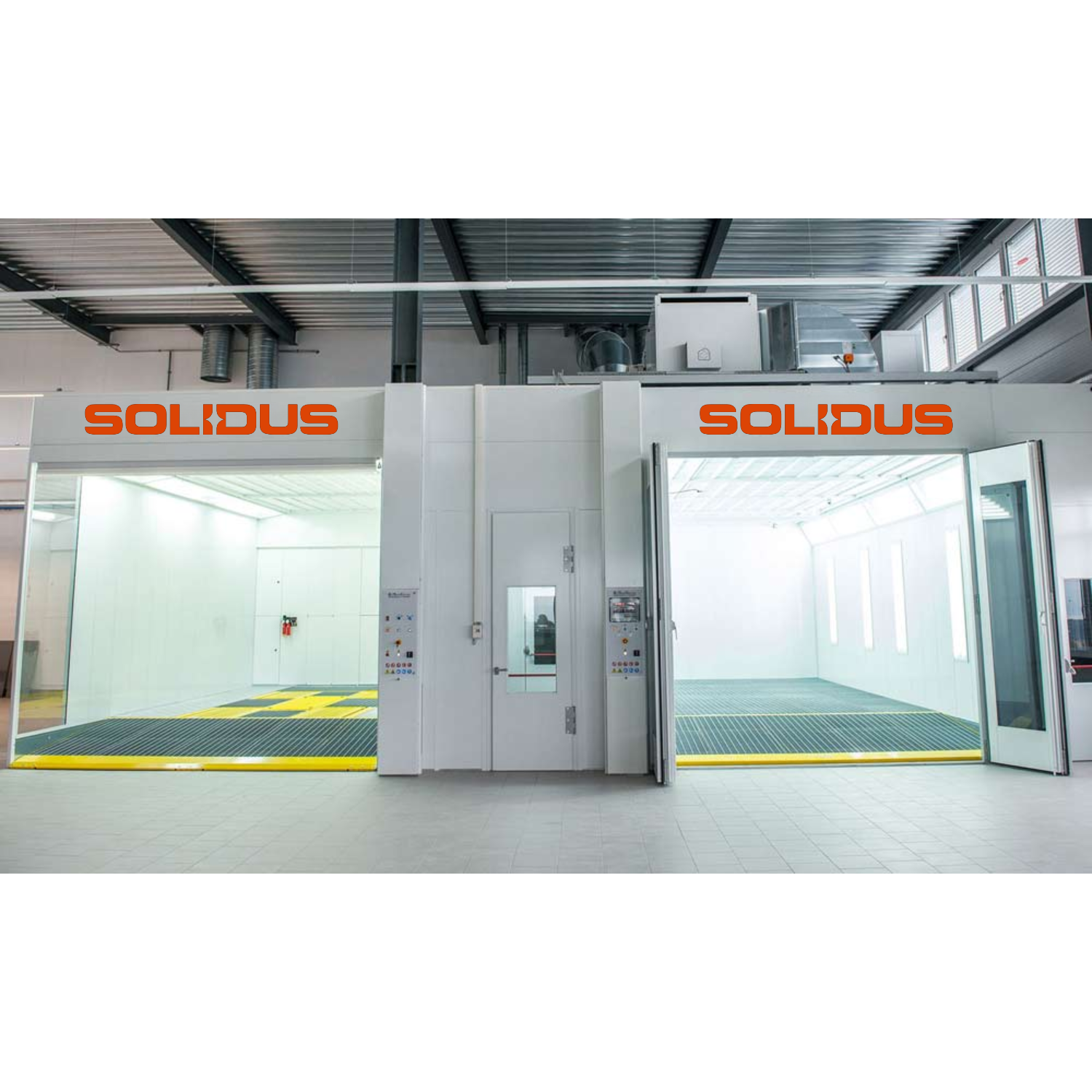

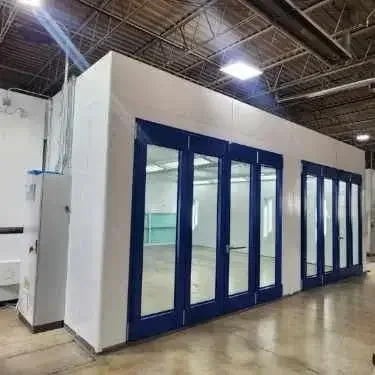

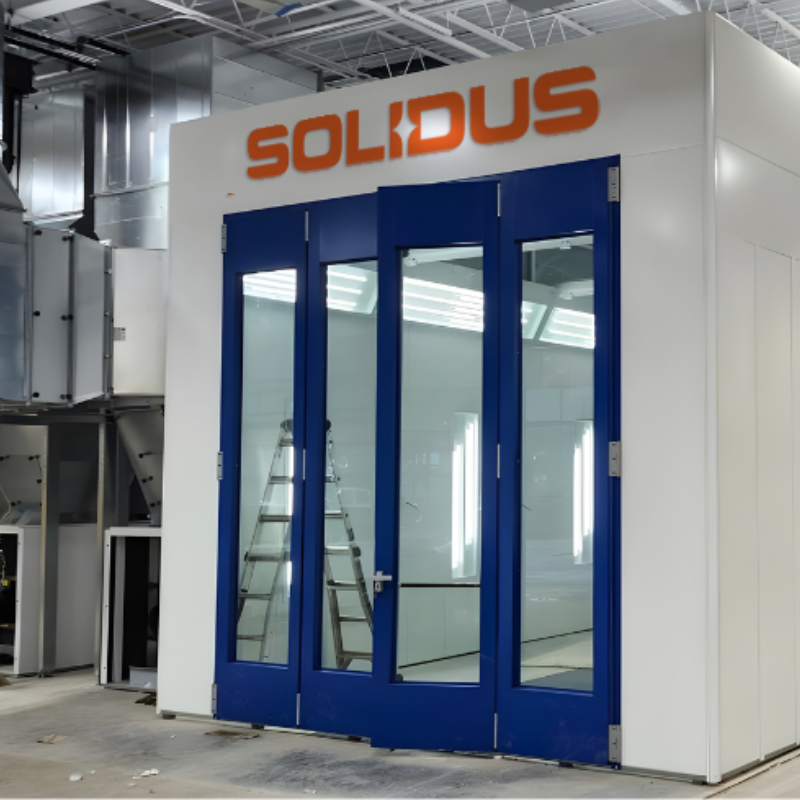

Solidus Paint Booth

    • Optimal oven temperature

      Fast response to set temperature with minimal temperature variations.

    • Smart ventilation

      Zoned and controlled air speed, directed only where it is needed on the vehicle, using less energy.

    • Smart and 4.0 booth control

      Faster and more efficient painting processes thanks to proprietary SW algorithms and user adjustable working cycles. Remote control via internet

    Features

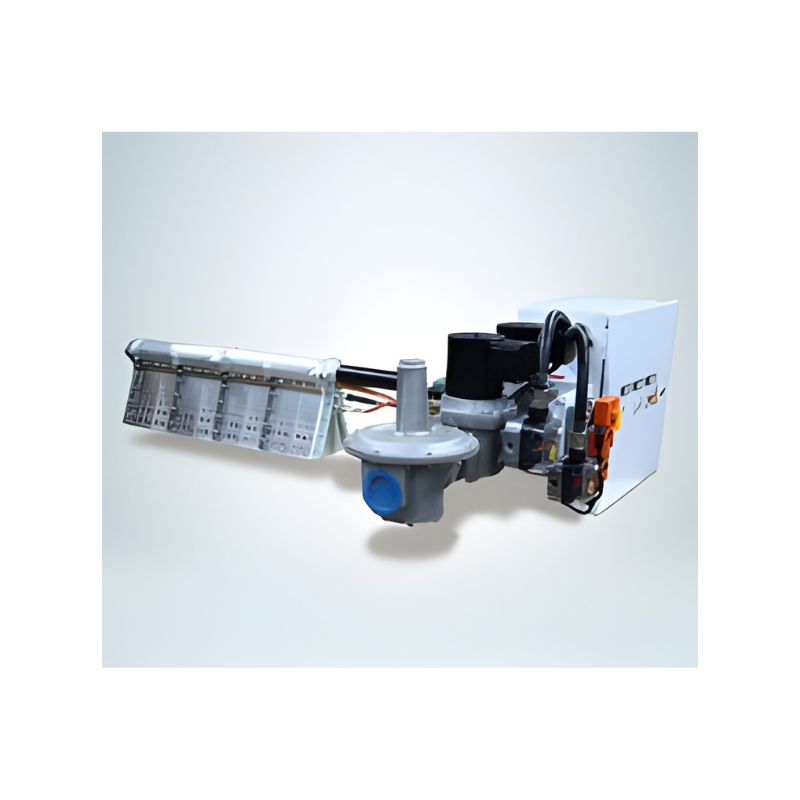

    • Modulating direct fired gas burner or indirect gas/oil burner

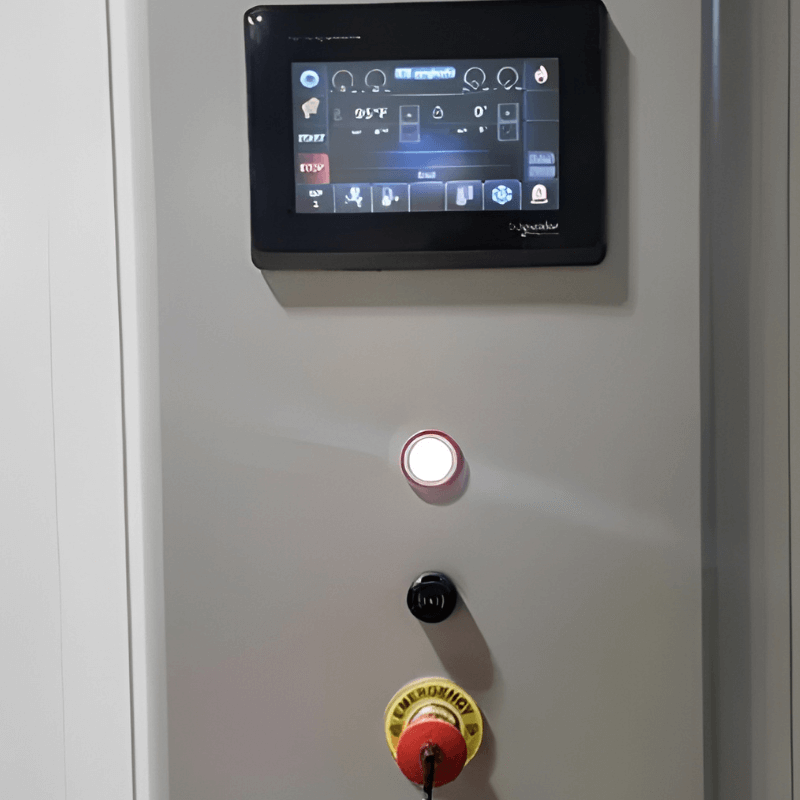

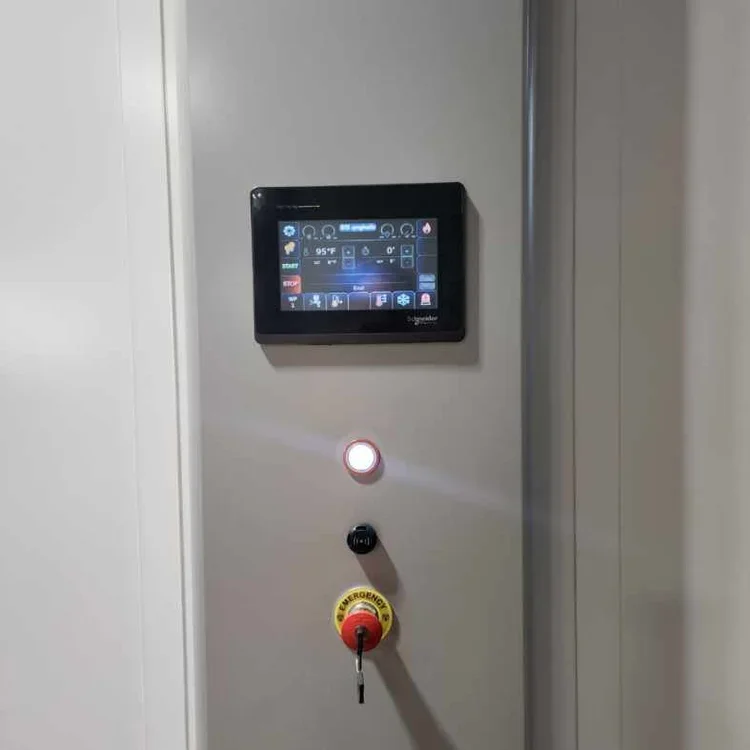

    • Industrial PLC touchscreen control panel

    • LED lighting

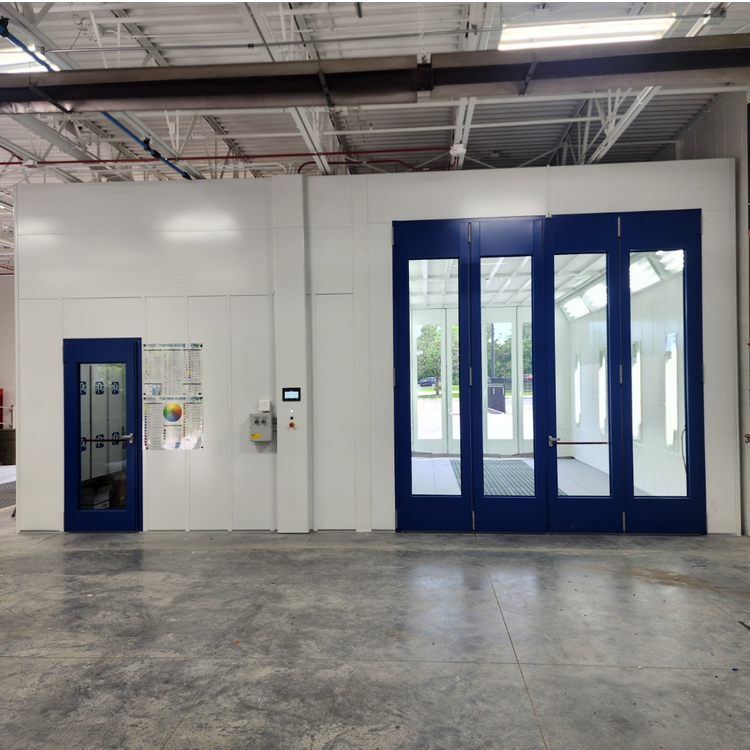

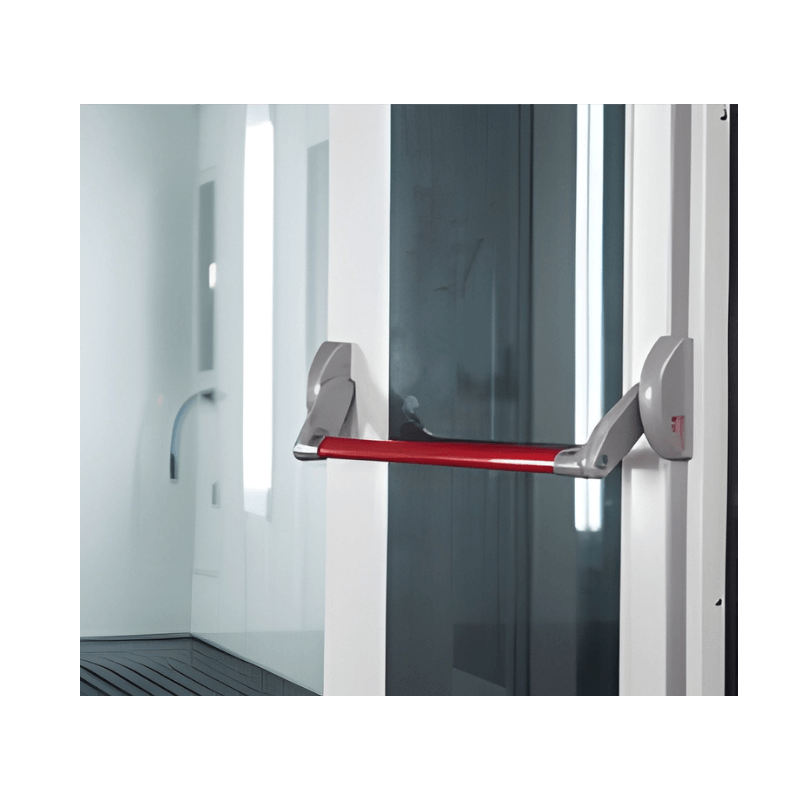

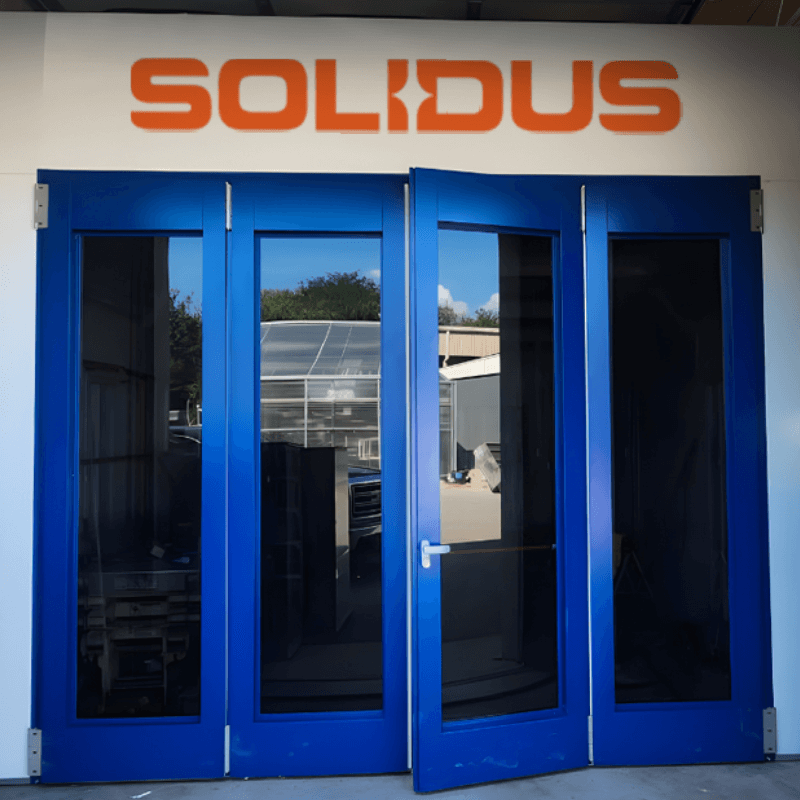

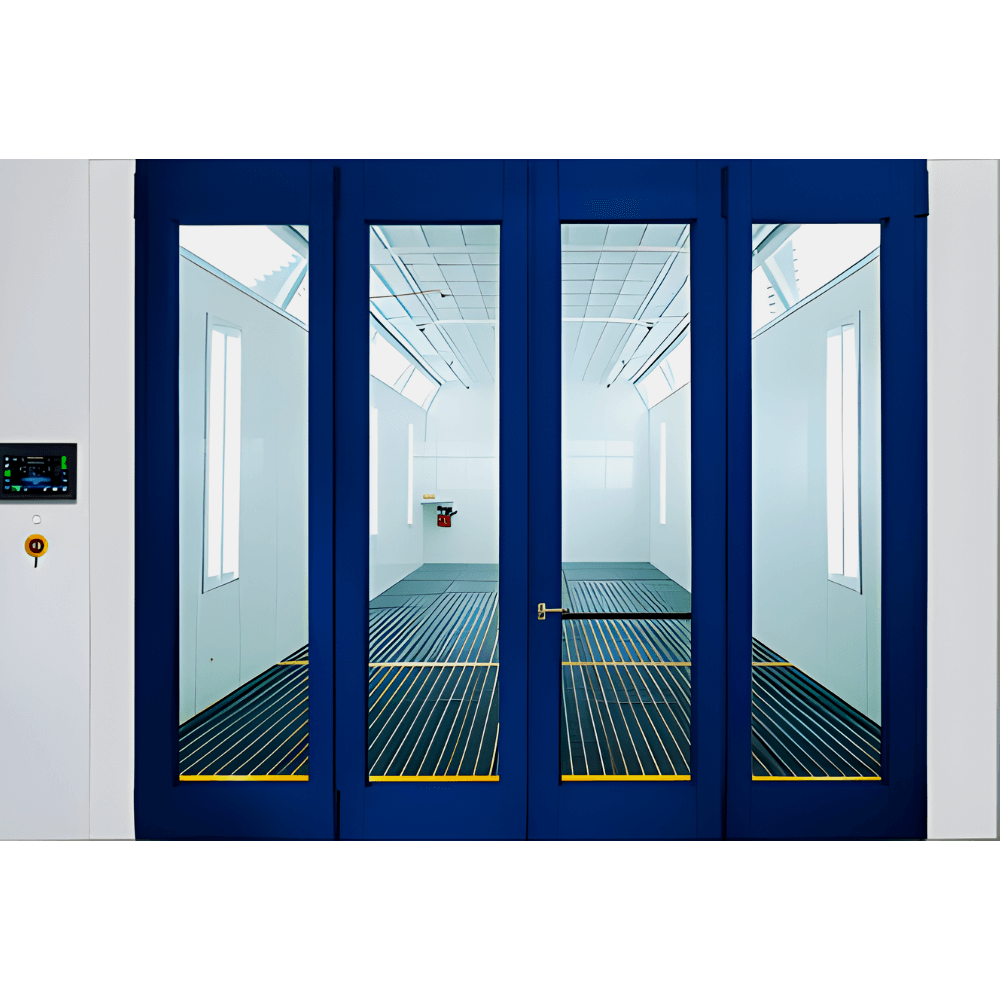

    • Fully windowed four-wing vehicle entry door

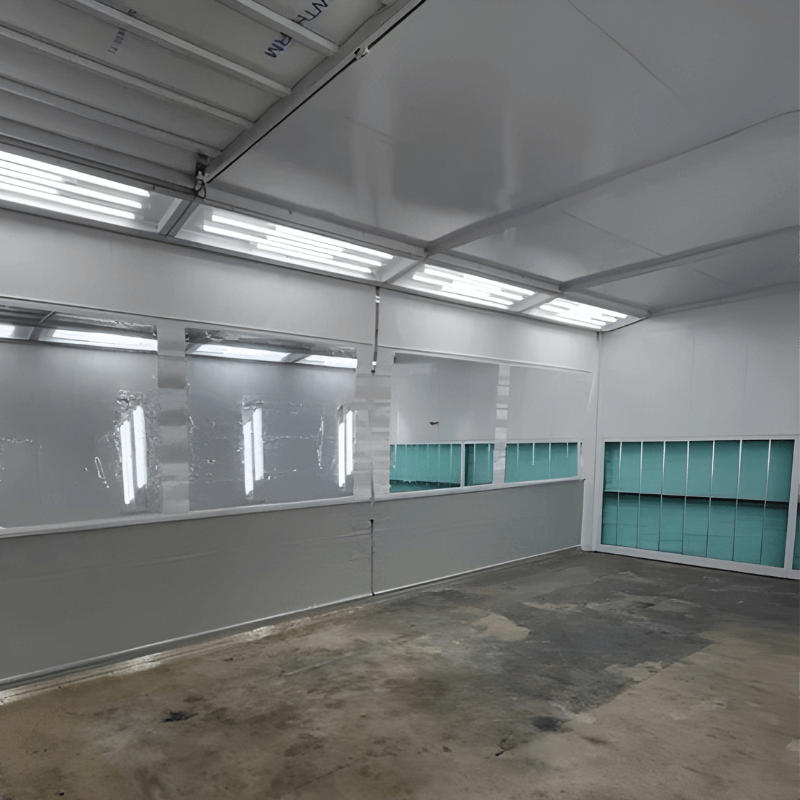

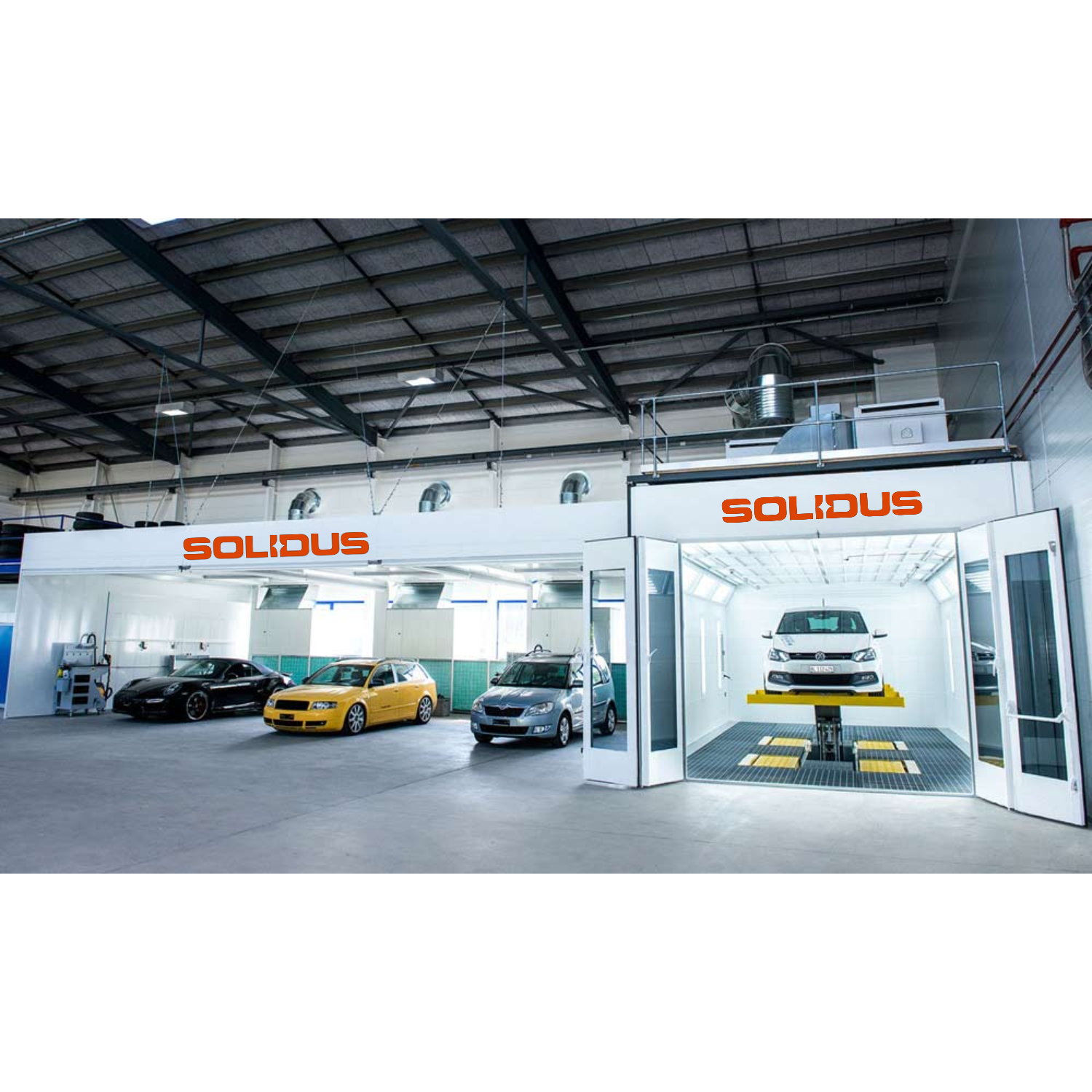

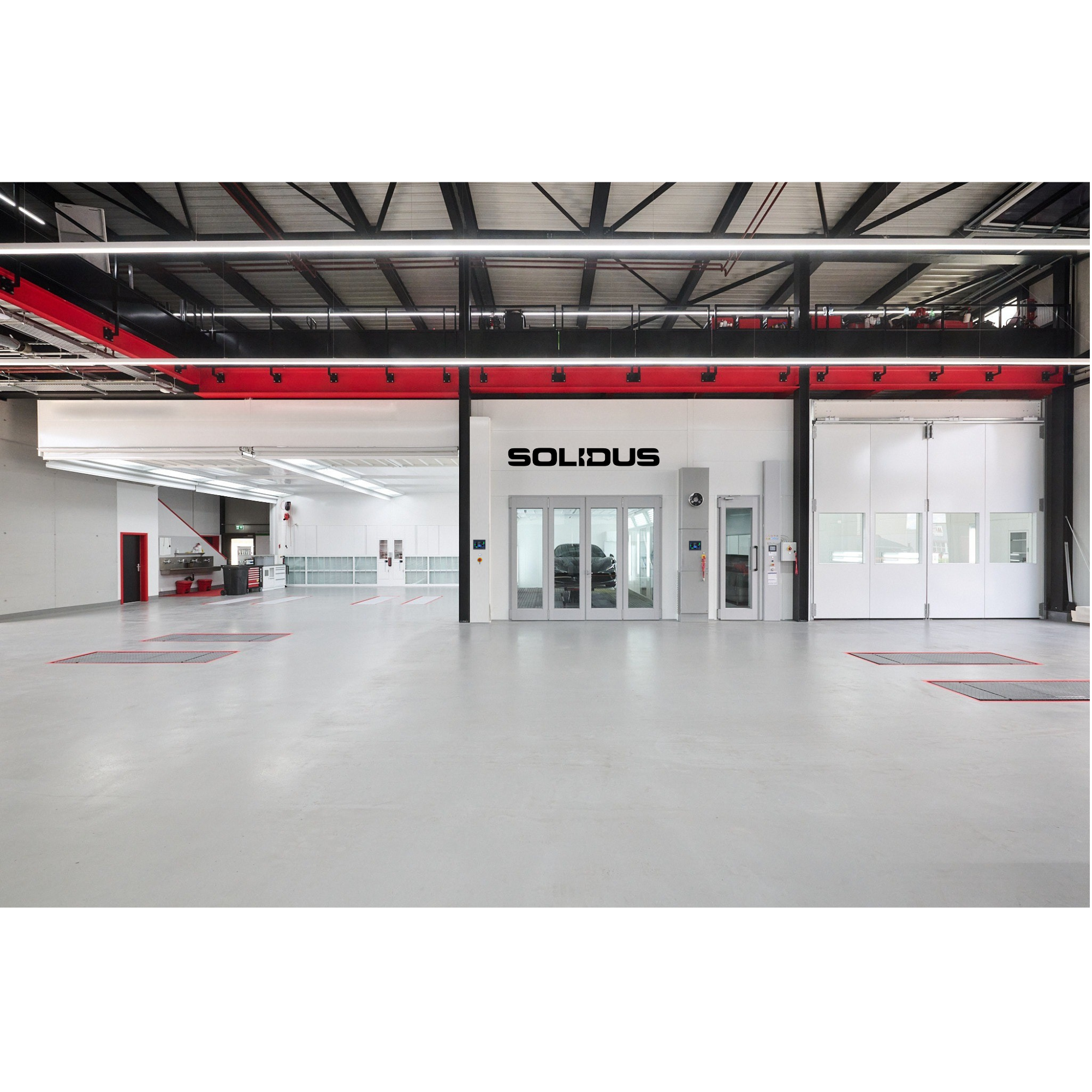

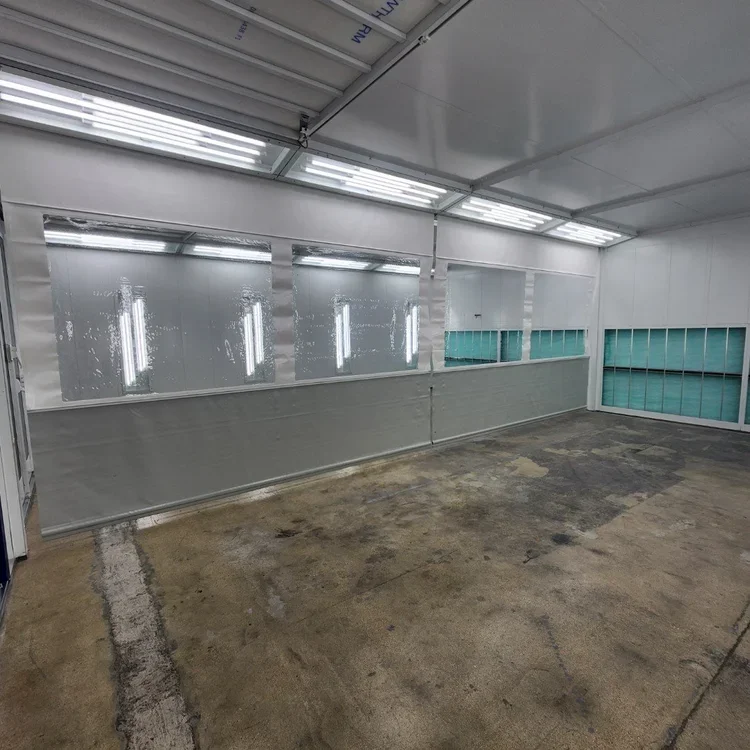

    Preparation Area

    • Customization

      With a vast range of sizes and optional add-ons to create your own configuration based on the product being prepared.

    • Ventilation and thermal ventilating units

      Ventilation units with or without heating for single bays or muti-zones with airflow control, where required.

    • Smart management industry 4.0

      Faster repair processes thanks to programs optimized for smart repair type, advanced air controls and monitoring of all operating parameters.

    • Eco-Energy efficiency

      Low consumption and high energy efficiency with 100% performance.

    Features and options

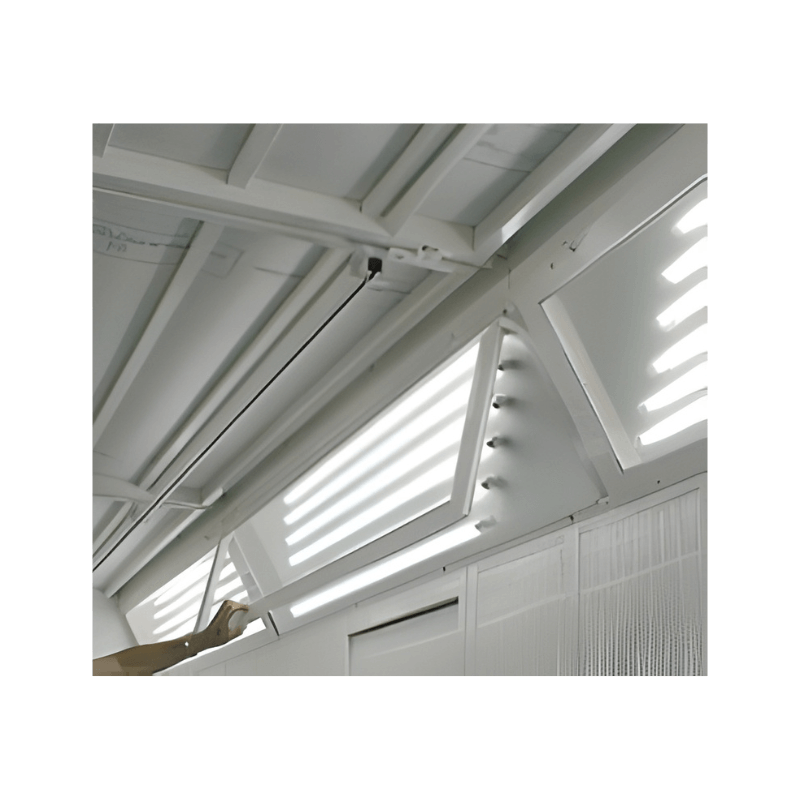

    Plenum

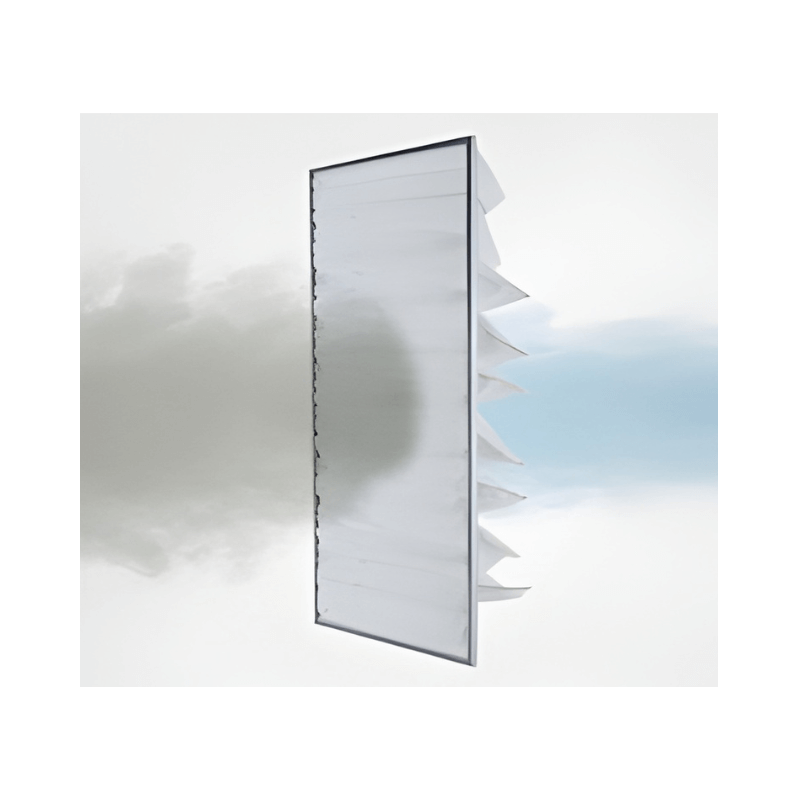

    • wide filtering surface

    • LED lighting

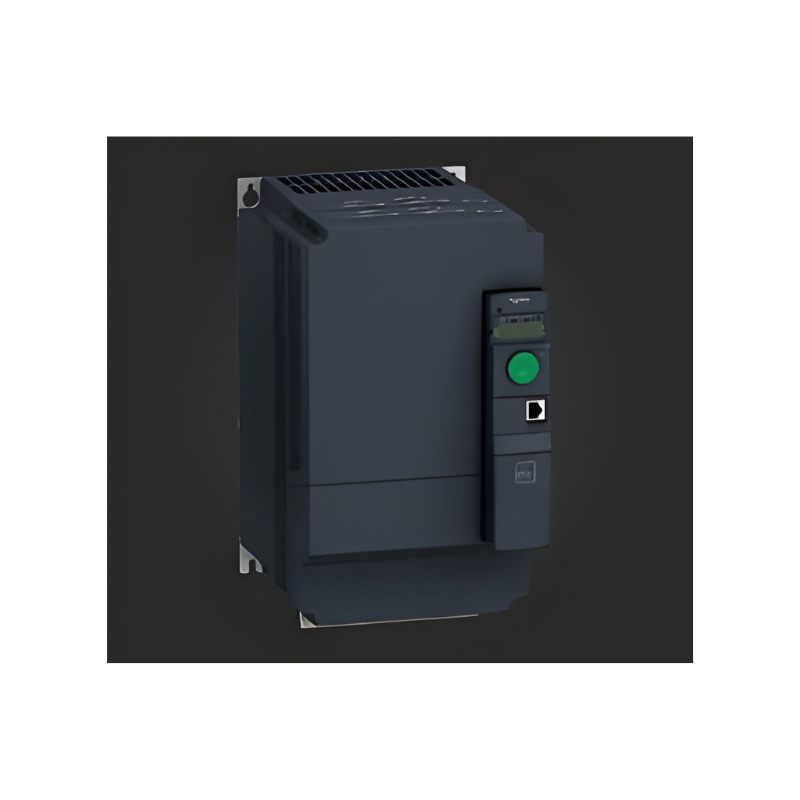

    Automation and process control

    • Integrated electronic control panel

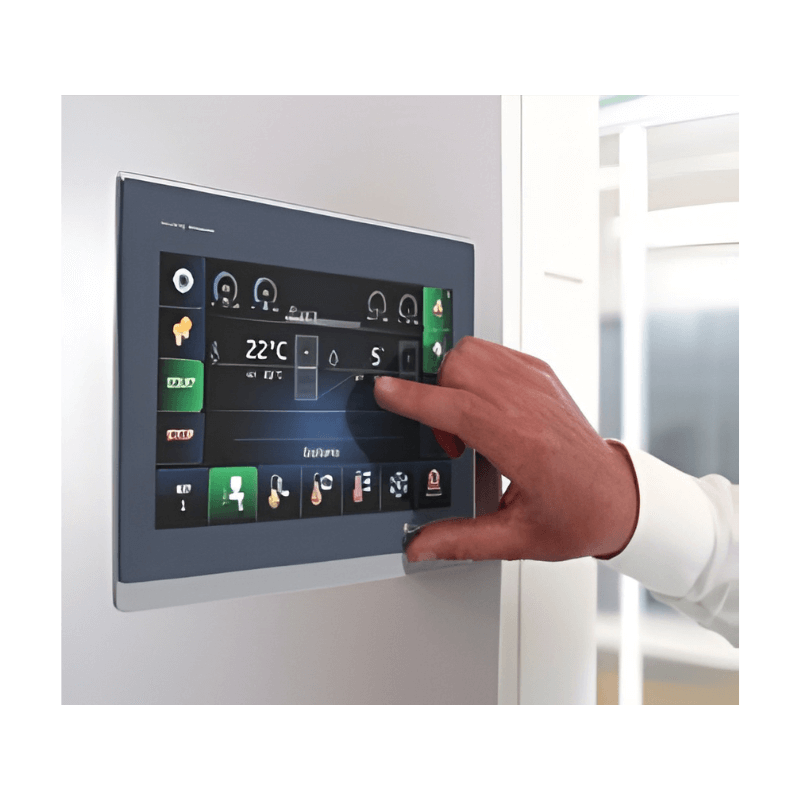

    • PLC 10.1 touchscreen

    • Air diffusion with bay partitioning and airflow volume controls

    • Safety relays and controls

    • Smart diagnostics, reporting, remote support

    Exhaust extraction system

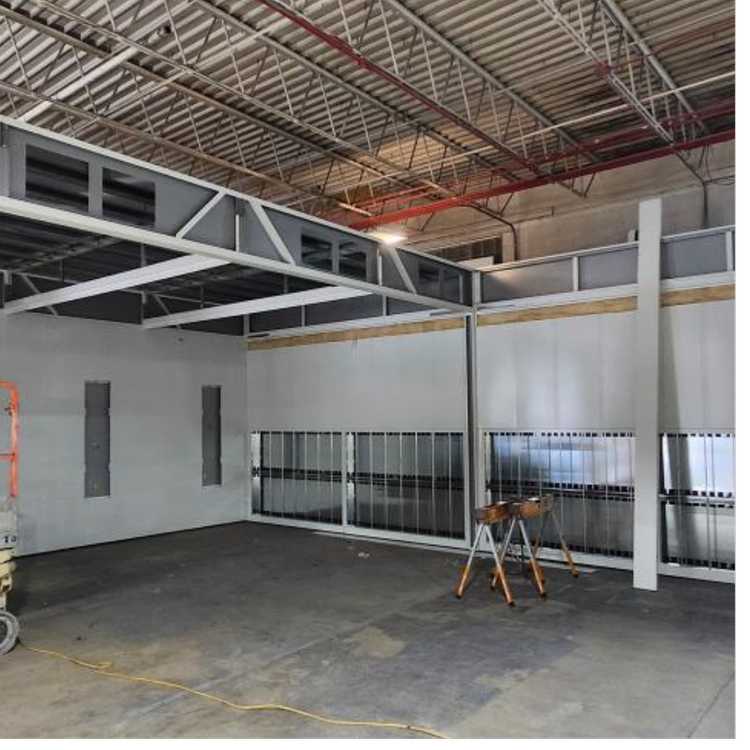

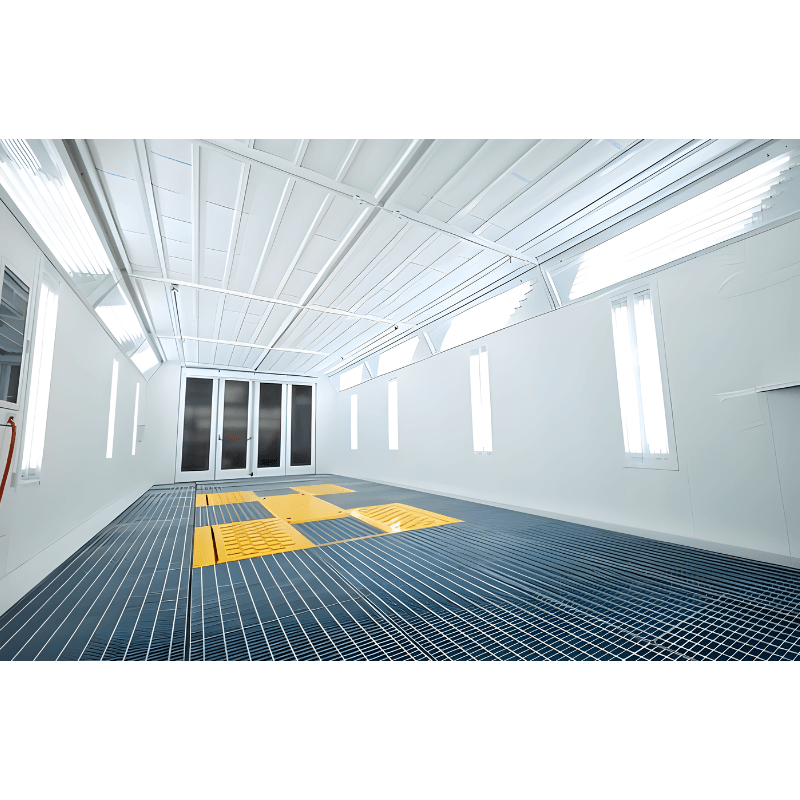

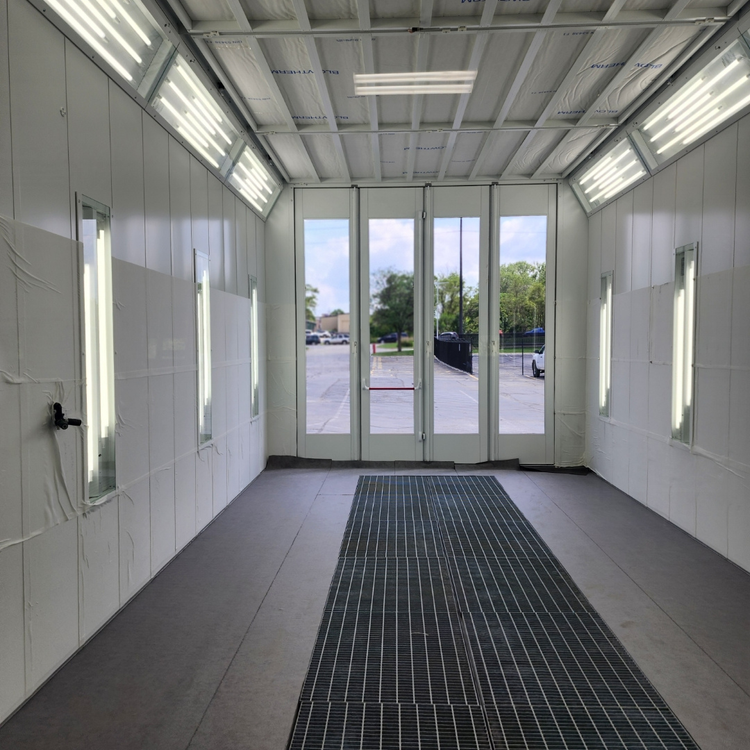

    • Floor system for laminar vertical airflow

    • Side, or rear air extraction

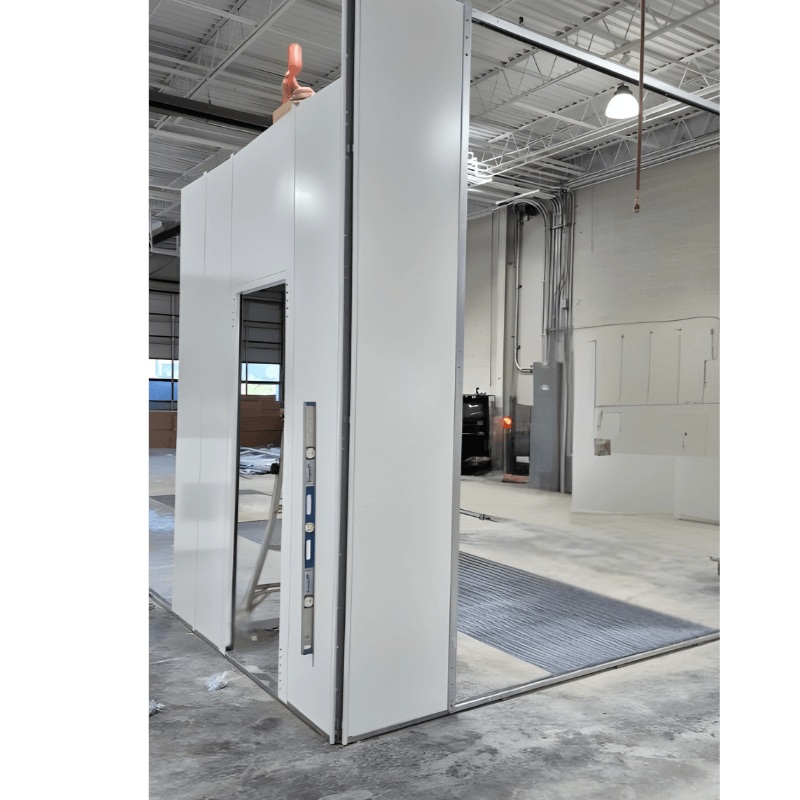

    Structures and layouts

    • Rear or side wall panels

    • Windows or full glass wall panels

    • Manual or motorized curtains with smart controls

    • Leveling accessories between booths or other preparation bays

    • Fixed or pneumatic ramp

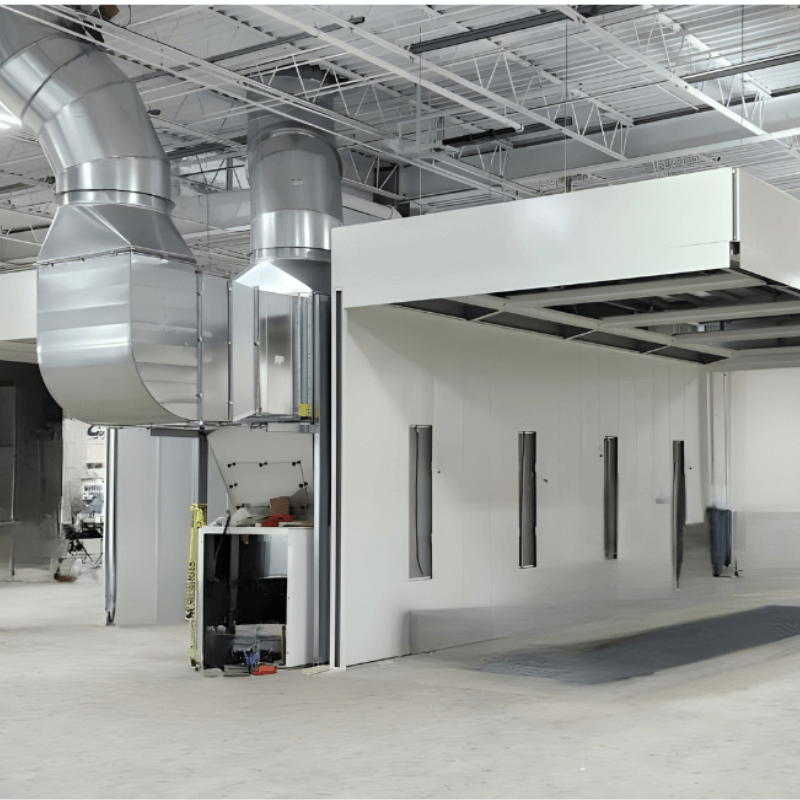

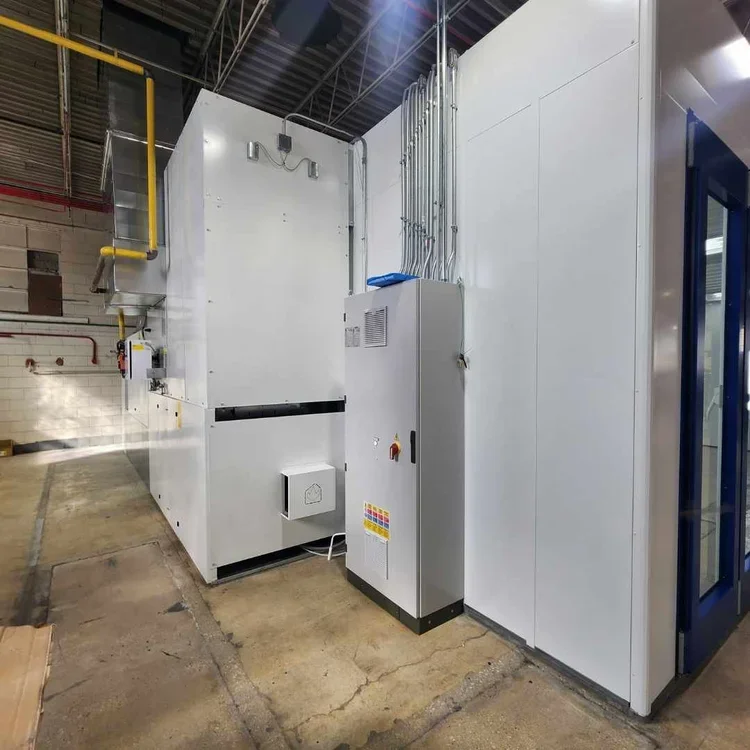

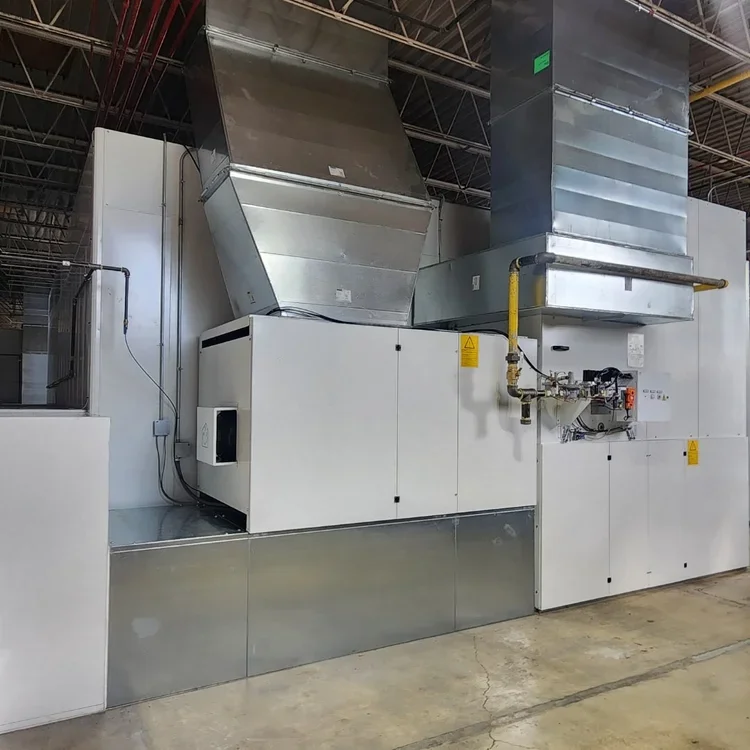

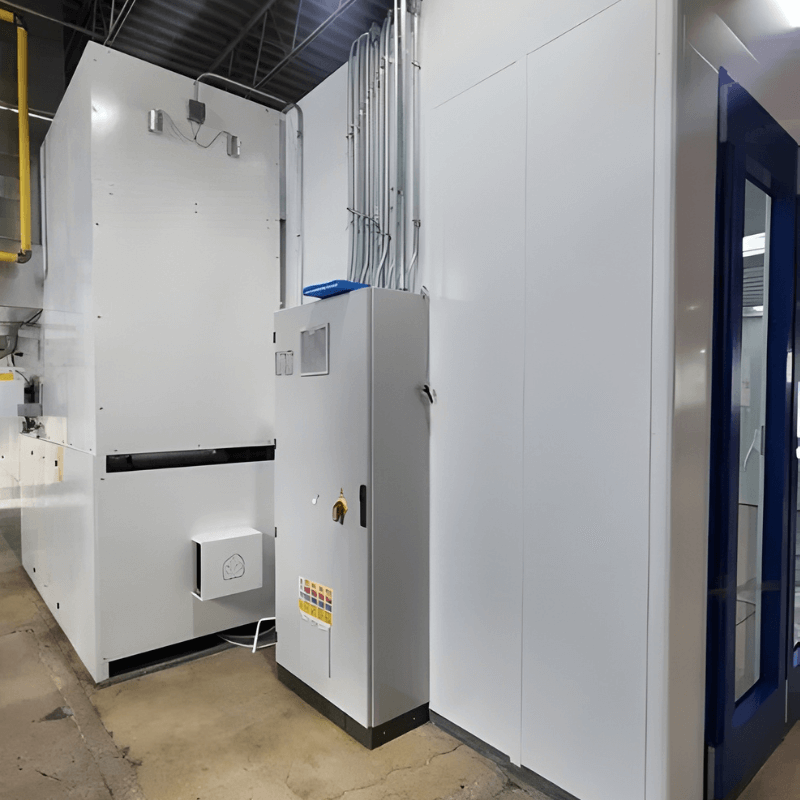

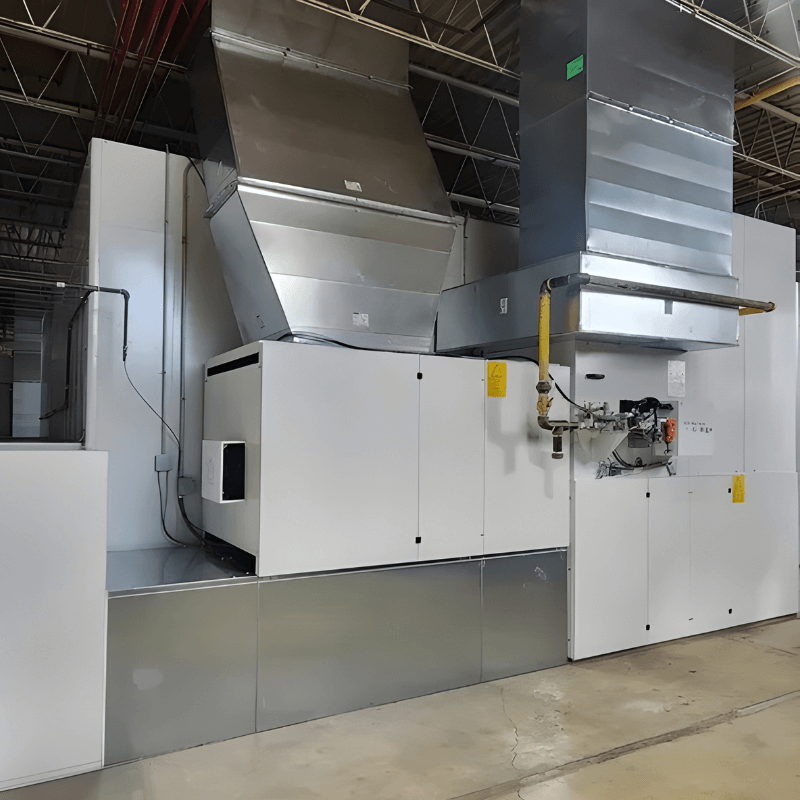

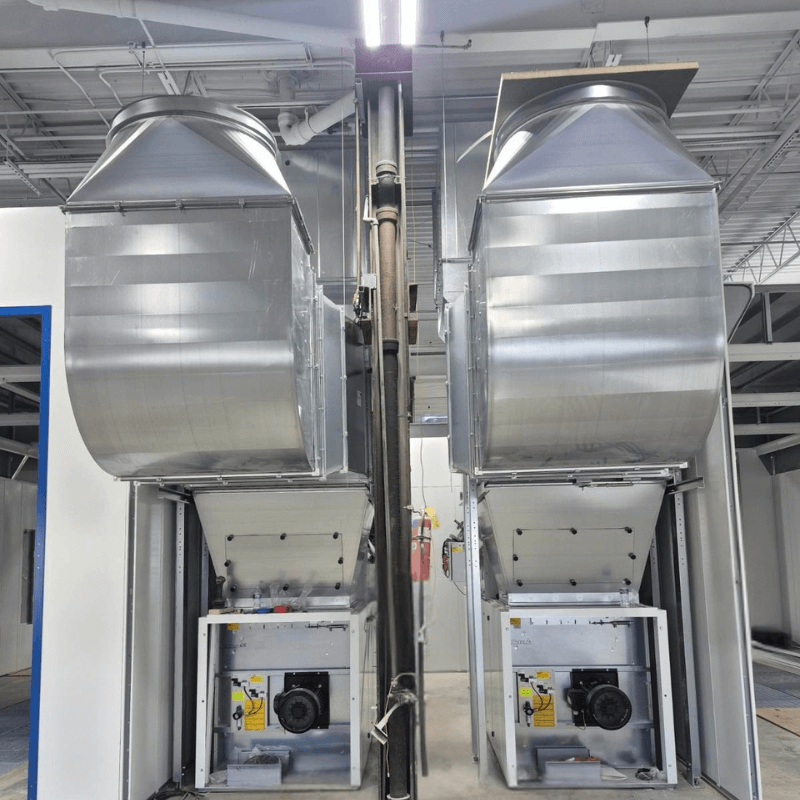

    Ventilating units

    • With or without heating

    • Gas/oil-fire burners, hot water or electric battery module

    Modules for perfect integration

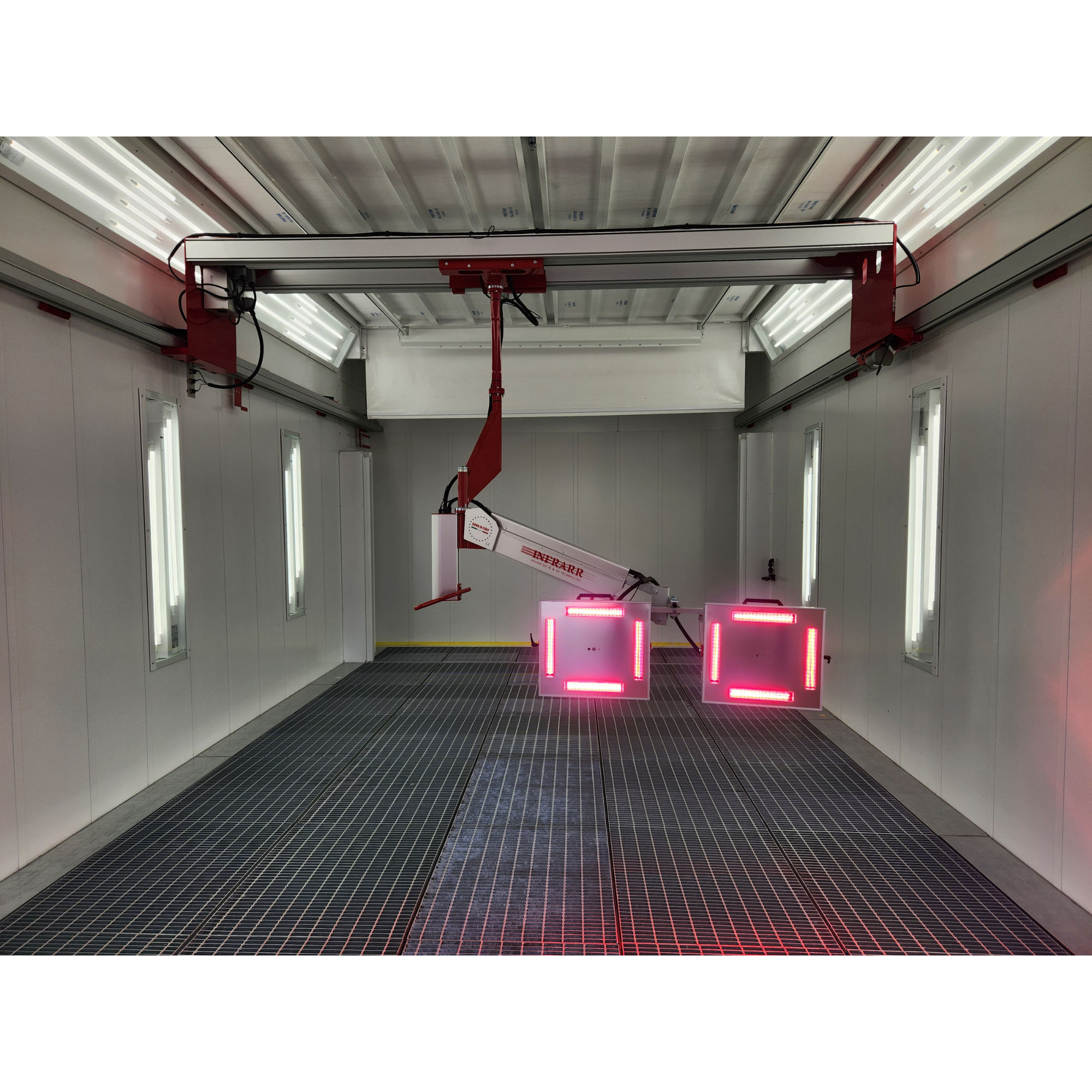

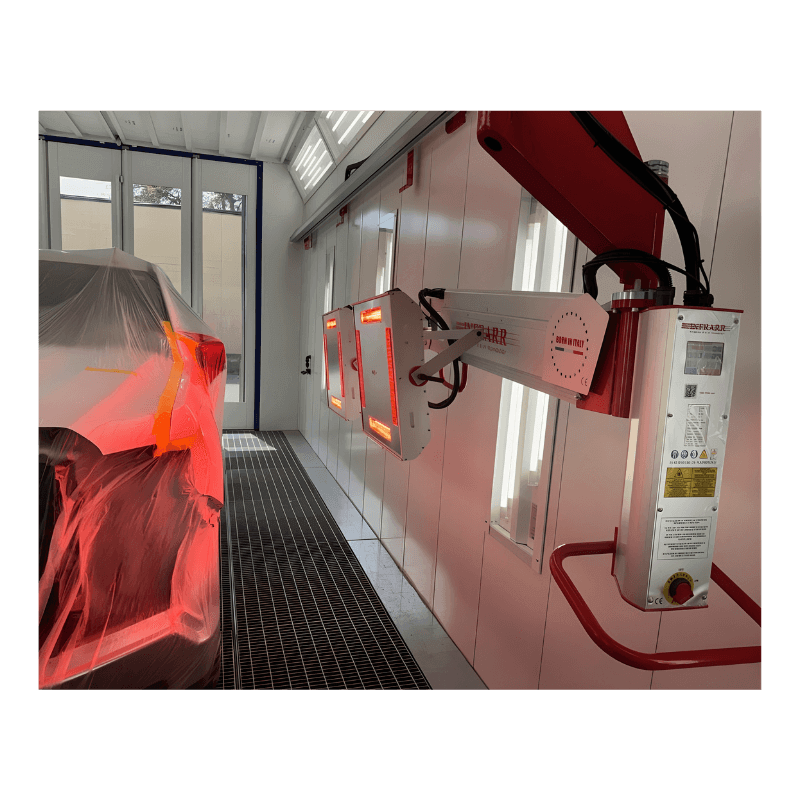

    • IR/UV paint curing lamps

    • Mobile and central dust extraction systems

    • Well-equipped walls with accessories, cabinets, functional switchboards

    • Integrated hydraulic under body car lift system
