OEM Mercedes-Benz Certified Equipment
Meets Mercedes-Benz OEM specifications and approval standards.
Gyspot PTI Genius (6M) - 208V
-
The GYSPOT INVERTER PTI-G spot-welder is the machine of the future. Therefore the onboard intelligence guarantees full automation, offering body shops the ability to increase their efficiency. The Genius G-clamp with pneumatic over-opening, easy-arm positioning without adjustment, motorized overhanging arm that provides a wide working area. This makes the GYSPOT INVERTER PTI-G the most advanced machine for the active collision repair shop.
Motorized, Adjustable & Ergonomic Overhanging Arm
Extends up to 120cm from the power source
Motorized overhanging arm to adapt to the working height.
Adjustable in height from 159 to 253 cm
Rubber protections at the end of moving parts
Creates easy access to the work area
Smart Welding
AUTO Mode: the machine automatically recognizes – steel type, sheet-metal thickness, Panel bond presence, and insulating material between HSS/VHSS/UHSS/Boron sheet-metal.
Traceability: The recording feature saves the characteristics of each welding spot performed to the SD card provided
Easy transfer of saved reports to PC.
Robust and Mobile
Reinforced and maneuverable trolley with 30-litre coolant tank.
Expander on the front wheels for better stability.
Integrated 6-arm support
Specifications
Welding current: 14,500 A.
Clamping force: 550 daN with 8 bar air pressure.
Liquid cooling of the entire transformer, rectifier, electrodes, and caps.
The new design of the G-clamp cylinder and welding algorithm maximizes productivity
User-friendly navigation using the 5.7″ LCD screen.
Automatic adjustment of the pressure between electrodes.
Spot count feature to determine when you need to change the caps.
Gyspot PTI-S7 22V Evolution
-
The Gyspot-PTI-s7-220v-Evolution is the ideal answer to the welding requirements of high strength steels (UHSS/boron), with a clamping force of 550daN, with 8bars air pressure, and a welding current that can reach 14 500Amps
Its C-clamp integrates a high-tech transformer
Brings a solution to limited power supply issues, as it can operate with 16 Amps to 25 Amps fuses only
Operation is extremely easy thanks to the automatic welding parameters setting in easy mode
GYSPOT PTI NEO
-
The GYSPOT PTI NEO is an automatic spot welder designed for the assembly of car body panels. Its liquid-cooled gun with integrated transformer is the lightest on the market, weighing just 9.7 kg when fitted with the G1 arm. Compact and manoeuvrable, it is ideal for workshops where space is limited. It features an ergonomic, user-friendly colour interface.

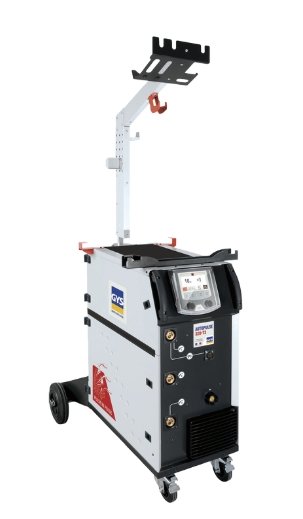

Autopulse 320-T3
-
A digital MIG/MAG double pulse generator with 3 integrated wire feeders
An extremely advanced machine with 57 synergic curves providing an exceptional arc quality
Versatile; it will hold 3 different torches to weld steel, aluminum and brazing (CuSi3/CuAl8)
User friendly interface and very precise wire feed make an outstanding quality weld on very thin sheets
GYSPOT PRO 230
-
This 230 V, steel dent puller boasts an output current of 3,800 A making it ideal for all steel straightening
and dent-pulling applications. Its two guns (one automatic and one featuring trigger control) as well as its
user-friendly control panel automatic make this device versatile and efficient to use.
GYSPOT Expert 200
-
Dedicated for various dent pulling and straightening body shop operations, the GYSPOT EXPERT 200 is a high spec machine able to deliver up to 5100A of power. The welding current and welding duration are set separately for a more accurate control of the impact to galvanize and particularly thin steel sheet.
GYSPOT 39.02
-
230V, 3800A steel dent remover ideal for all steel straightening and dent removal work. Easy to use thanks to its self-priming gun and intuitive control panel.
Only 2 parameters to select:
• power level (from 11 levels)
• the tool used (from 7 tools)
=> No need to set time and intensity.
Automatic priming system
The welding point is generated automatically by simple contact between the tool and the part to be straightened.
EASYCUT 30 FV (WITH TORCH)
-
EASYCUT 30 FV is a 30 A plasma cutter with a cutting capacity of 10 mm in steel (and 15 mm in separation). Its HF-free ignition system extends the life of consumables. Designed for maintenance work, such as car bodywork, it features very robust mechanics and a simple interface with flowmeter.
- Quick and easy to fit consumables
- Intuitive control panel with a single potentiometer for adjusting cutting intensity
- HF-free priming to avoid electromagnetic interference
- Manual air pressure adjustment (2.5 < 9 bar) with front-mounted flowmeter.
- Automatic torch detection
- Supplied with IPT40 torch (4 m) and earth clamp (2 m, 10 mm²)
- Single-phase power supply, with flexible voltage, between 85 and 265 V
→ Requires connection to a compressed air source
Speedliner Expert 200+ARCPULL 200
Speedliner V2 PRO 230 + ARCPULL 200

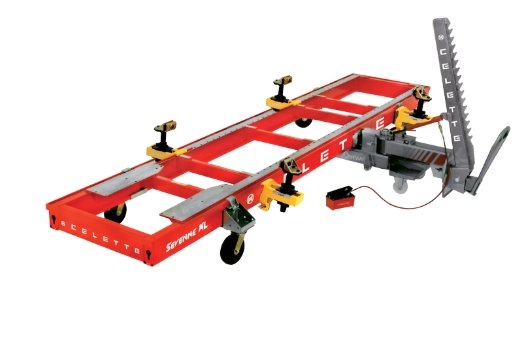

Sevenne XL
-
Extra-long mobile bench on wheels
Specially designed for repairing larger commercial vehicles
Allows positioning under a 2-post lift, and for loading and easily moving between work bays
5.8 m (19 ft) length is suitable for light trucks and commercial vehicles
The universal peripheral frame enables quick anchoring; adjustment of the clamps, wheels, transport handle; and multi-function supports

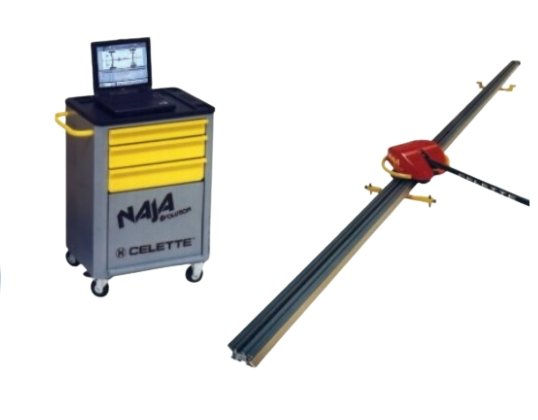

NAJA 3D Measuring System
-
NAJA 3D Electronic measuring system by Celette is one of the worlds most advanced and user-friendly measuring system in the auto body repair industry.
Celette is recognized world wide for its constant innovation to provide the best in class collision repair systems and diagnostic equipment to the car manufacturers and to the end user.
Solidus provides sales, installation, and technical support to repair shops nationwide looking to upgrade their OEM equipment requirements.
MIG WIRE REEL ALU AlMg5 Ø1.0 - 2 KG
D.200 - ER5356 / S Al 5356
MIG WIRE REEL AlSi12 Ø1.2 - 2 KG
D.200 - ER4047 / S Al 4047
MIG WIRE REEL ALU AlMg5 Ø0.8 - 0.5 KG D.100 - ER5356 / S Al 5356
Mercedes-Benz Approved Hand Tools
Flexible magnetic stick 881320
Wood mallet
Dead blow hammer
Soft Face Hammer
Bumping hammer round face 511039
Locksmiths hammer 300g 511040
Molding wedges
4.1mm temp fastener 20pcs
6.0mm temp fastener 30pcs
6.35mm temp fastener 20pcs
100mm drill bit for rivets
1/4” MAGNA/Cherry Max Nose
110v rotary sander
ALSi5 1.2 welding wire
Welding Protection helmet
Grinding protection blanket
Pnumatic body saw
Sawblade 32tpi 10pk
Sawblade 24tpi 10pk
WS90 Daimler version spot drill
8mm Variantric drill bit 5pcs
Drill bit (special) Z:SF-FRA-SN09
Drill bit for vario drill (3) mild steel spot weld drill bit
WS Body chisel 512001
Dolly low crown 511105
Tool Storage cabinet
100mm Special drill bites TIN for rivets 6.1mm 5pcs
100mm drill bit TIN for rivets 6.5mm 5pcs
Countersink unit 120*
Set of alu drill bits 1.0mm to 10.0mm
Ball shaped alu die cutter
Cylindrical shaped alu die cutter
Cartridge Piston EPX
(3M 50004)
Temp strip up to 160c. 10pcs
Pnumatic grinder (Air grinder)
Abrasive discs 2pc with clamp unit
Round brush with shaft 80mm
Flat brush-wood handle
Face shield and hearing protection muffs
3 gap gauge set
Adjustable File Holder
Standard 14” Body File
Straight Shell 14” Body File
Left Hand 10” Aviation Tin Snips
Right Hand 10” Aviation Tin Snips
J-Type Axial Clamp Qty 2
LL-Type Axial Clamp Shallow Qty 2
JJ-Type Axial Clamp Deep Qty 2
Dolly Toe 51110
Dolly Universal 511112
Dolly Daimler 511117
Dolly Panel removing set
Heavy Spoon
Pry Bar-extra strong
Kit of Spatulas
500ml penetration test fluid
500ml cleaner fluid
500ml developing fluid
Round brush (long bristle)
W-Type Axial Faced Clamp Qty 2
U-Clamp 12” Locking Pliers Qty 2 (GR-14512)
C-Clamp 12” Locking Pliers Qty 2 (GR-14412)
C-Clamp 6” with Swivel Tips
Qty 2 (GR-22406)
Straight Jaw 5” Locking Pliers Qty 2 (GR-11205
Curved Jaw 5” Locking Pliers Qty 2 (GR-11105)
GoldEdge CryoCobalt Drill Bit 1/4” pkg of 3
GoldEdge CryoCobalt Drill Bit 5/16” pkg of 3
GoldEdge CryoCobalt Drill Bit 3/8” pkg of 3
Rivet hole deburring tool
